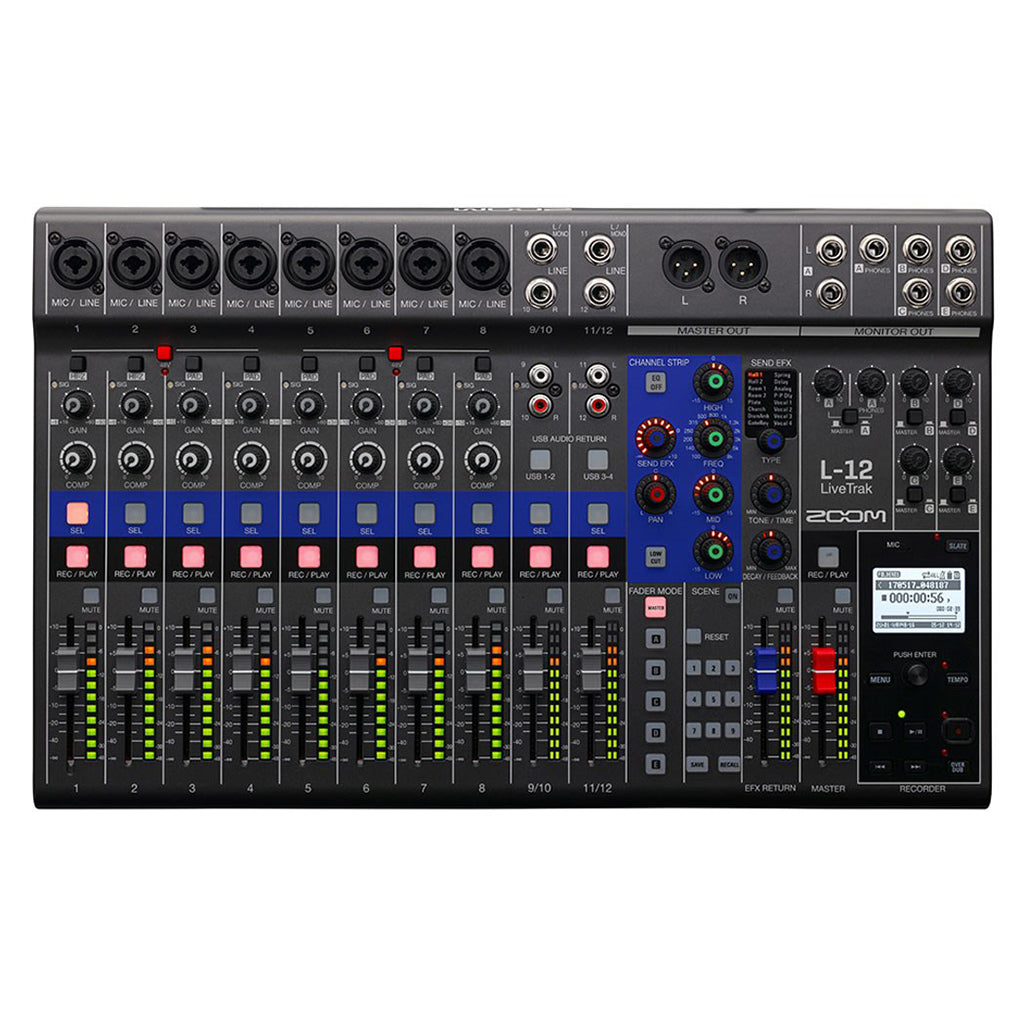

    Zoom Livetrak L-12 Digital Mixer


    With the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

    LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

    LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD cardwhile simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.

    Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

    LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*

    Features

    • 12-channel digital mixer (8 mono/2 stereo)
    • 14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
    • 12-track 24-bit/96kHz recording directly to an SD card
    • Record up to 48kHz to a computer and an SD card simultaneously
    • Create customizable, savable headphone mixes for up to 5 band members
    • Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing
    • 8 combo jacks accommodate both XLR and 1/4 connectors
    • 8 great-sounding mic preamps with phantom power and +60dB of gain
    • Channels 1–2 offer hi-Z inputs for your electric guitar or bass
    • Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices
    • Each channel features a 3-band mid-parametric EQ and 16 built-in effects
    • Channels 1–8 include a dedicated compressor for controlling dynamics
    • Channels 3–8 have a -26dB pad for capturing loud sources
    • Clear 12-segment LED metering for keeping an eye on your levels
    • Save up to 9 scenes and recall your custom settings automatically
    • Record automatically when the master fader detects a certain dB level
    • Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
    • Built-in slate mic for recording comments or talk back
    • Onboard metronome for keeping the band in sync



    Specs

    • Type: Digital Mixer with USB Interface
    • Channels: 12
    • Inputs - Mic Preamps: 8 x XLR-1/4 combo (mic/line)
    • Phantom Power: 8 channels (1-4,5-8)
    • Inputs - Line: 4 x 1/4 (2 x stereo channels), 2 x Dual RCA Stereo
    • Inputs - Other: 2 x XLR-1/4 combo (Hi-Z)
    • Outputs - Main: 2 x XLR (master), 2 x 1/4 (monitor)
    • Aux Sends: 5 x Monitor
    • Busses/Groups: 1 x FX
    • Talkback: Built-in slate mic
    • Remote: 1 x 1/4 (footswitch control)
    • USB: 1 x Type B, 1 x Type A
    • Computer Connectivity: USB (14 x 4)
    • Headphones: 5 x 1/4 TRS (headphones/monitor)
    • Faders: 10 x channel faders, 1 x EFX return, 1 x Master
    • A/D Resolution: Up to 24-bit/96kHz
    • EQ Bands: 3-band Mid-parametric EQ
    • Effects: 16 effect varations; Reverb, Delay
    • Signal Processing: Compression
    • Features: Save up to 9 scenes, Metronome, Powered headphone outs
    • Transport Controls: Yes
    • Screen: LCD screen
    • Storage: SD/SDHC/SDXC card slot
    • Power Source: 12V DC power supply (included)
    • Height: 2.78
    • Depth: 11.1
    • Width: 17.5
    • Weight: 5.58 lbs.
