VOX-VFZ-1

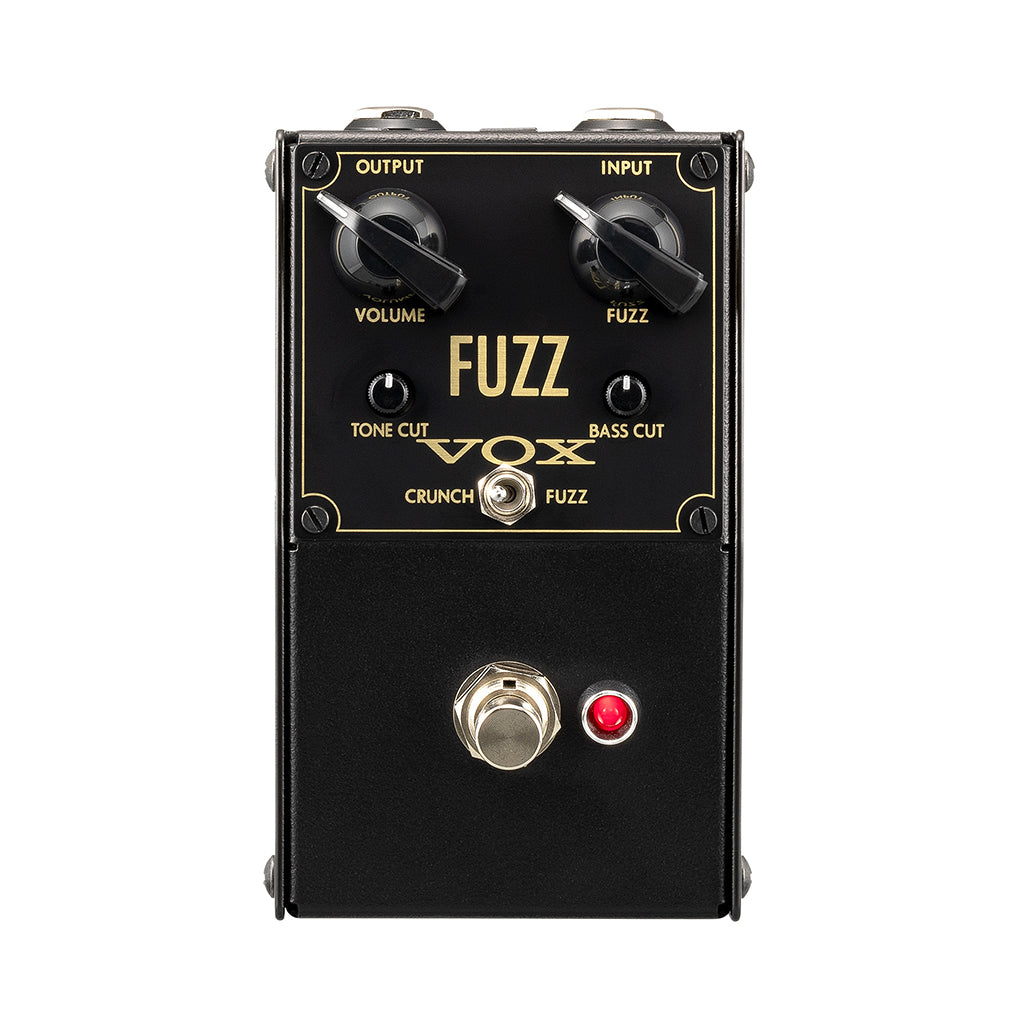

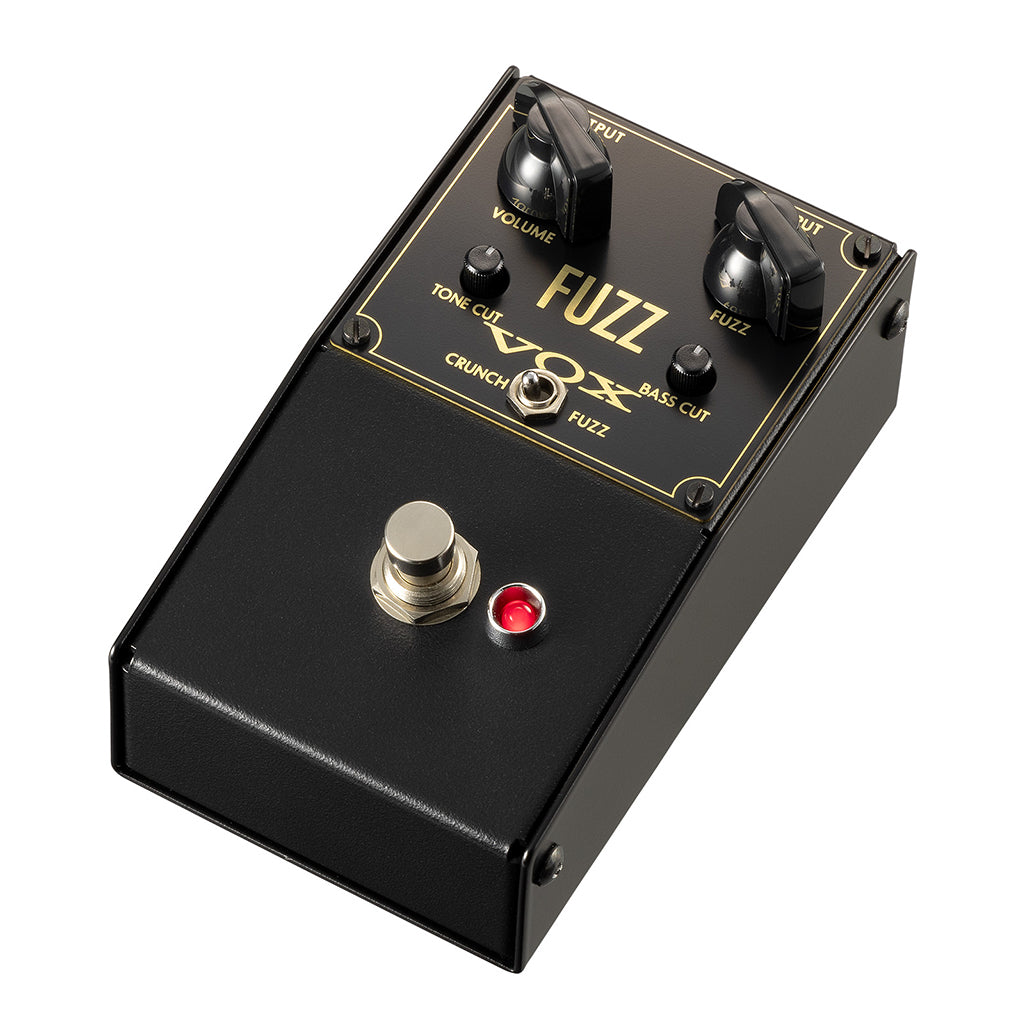

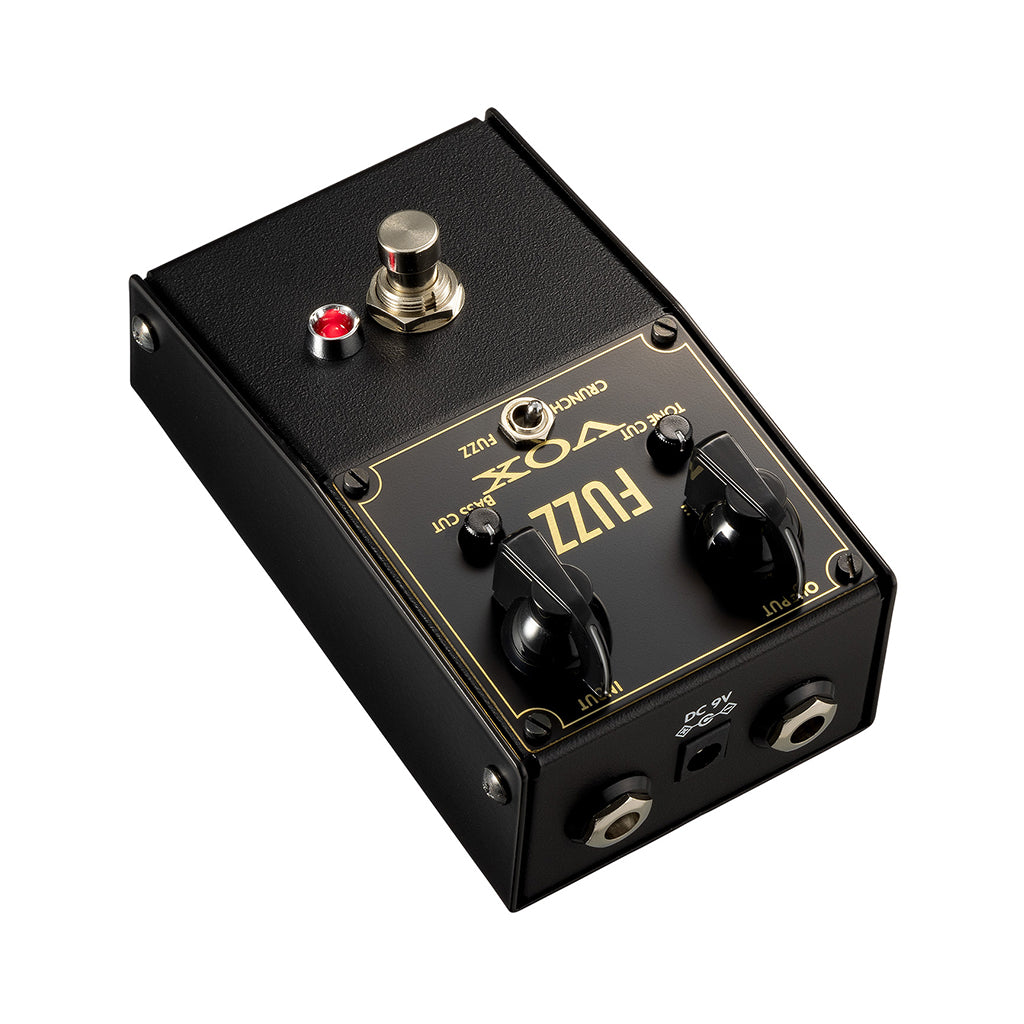

Vox VFZ-1 Fuzz Pedal w/Crunch Switch


ⓘ Please call for current stock updates before visiting us in-store.


Pay with Afterpay Popup
AMEX Logo Mastercard Logo ZipPay Logo Apple Pay Logo Visa Logo Paypal Logo

As a modern take on the iconic Tone Bender mk1.5, the VFZ-1 retains the highly sought after tonal and dynamic characters of a vintage germanium fuzz, while adding modern features for today’s guitarists. A BASS CUT and TONE CUT have been added to the signal so the VFZ-1 can be used to sound great on any amp or guitar. In addition, Vox added a CRUNCH switch that can produce the sound when the guitar's knob is slightly turned down. This allows you to create a brilliant crunch tone regardless of the guitar's volume.

The VFZ-1 also takes advantage of the modern components used in the circuitry. By using modern thin-film chip resistors, we have achieved even lower noise than with vintage carbon composite resistors. The world’s first distortion effect. In the 1950s, “distorted” guitar sounds were produced by equipment malfunctions or overdriven inputs, which later inspired the intentional creation of fuzz pedals. Used in countless iconic performances, fuzz became a central element of the British rock sound and, following the resurgence of alternative rock and grunge, has remained a staple pedal among players across a wide range of genres.

Features

  • Vintage two-transistor fuzz design updated with modern stability
  • Silicon transistors voiced for an authentic Germanium-like tone and response
  • Precisely targeted biasing for an expanded sweet spot and natural cleanup
  • Two premium Silver Can BC108 transistors
  • Crunch Switch for lower-gain, volume-rolled-back overdrive tones
  • Bass Cut and Tone Cut controls for wide-ranging tonal shaping
  • High input impedance allows placement anywhere in your signal chain—even after Wah pedals or buffers

Specs

  • Input impedance: approx. 10 KΩ Output impedance: 330 Ω

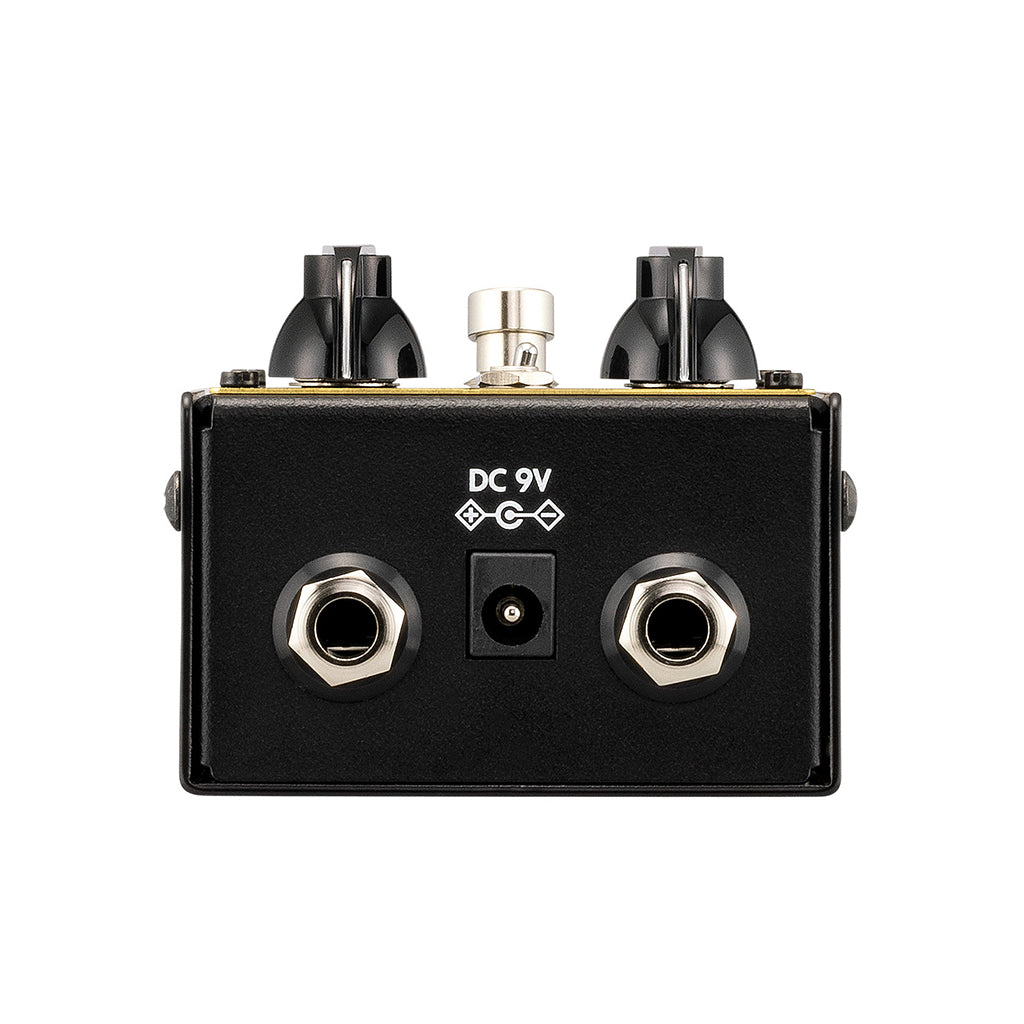

  • Connection jacks: INPUT jack (6.3 mm monaural phone jack), OUTPUT jack (6.3 mm monaural phone jack), DC9V jack
  • Power supply: 9 V battery (6LF22/6LR61/6F22) or AC adapter (9 V, , 600 mA or greater, sold separately)
  • Battery life: approximately 180 hours (9 V alkaline battery, continuous use; varies depending on the conditions of use)
  • Current consumption: 4.3 mA (9 V DC)
  • Power consumption: 39 mW (no-load power consumption: 24 mW at 230 V)
  • Dimensions (W / D / H): 74 / 123 / 58 mm / 2.91˝ / 4.84˝ / 2.28˝ (including protruding parts) Weight: 413 g / 14.57 oz (excluding battery)
  • Included items: Owner’s Manual, rubber feet Accessories (sold separately): AC adapter (9 V, , 600 mA)
