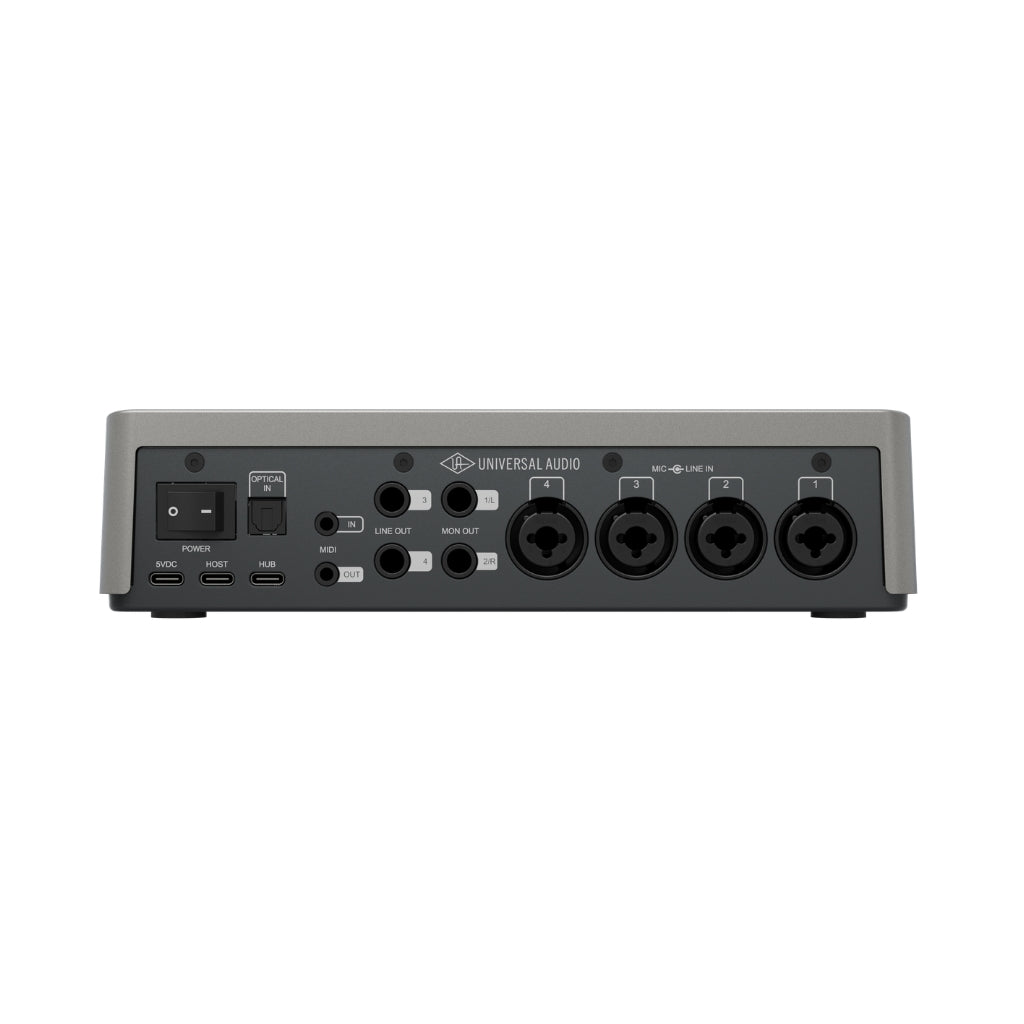

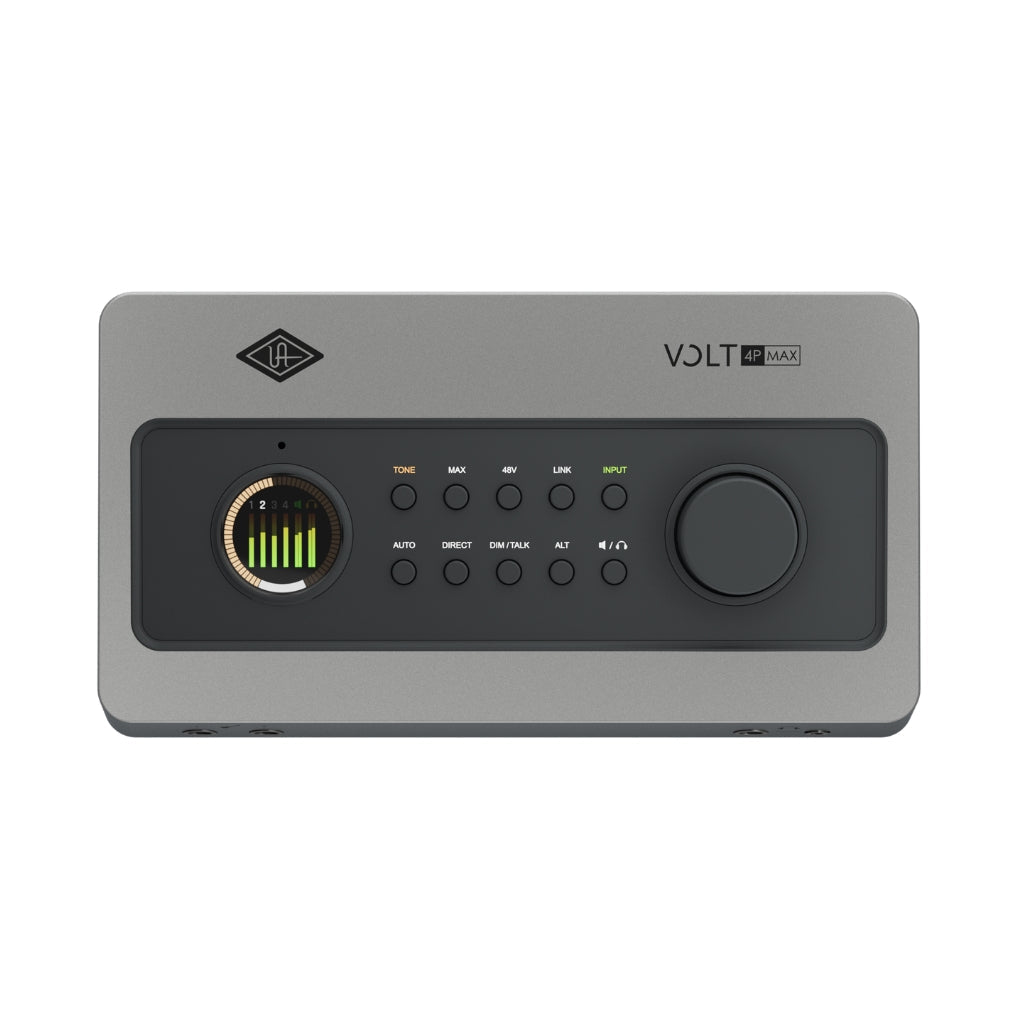

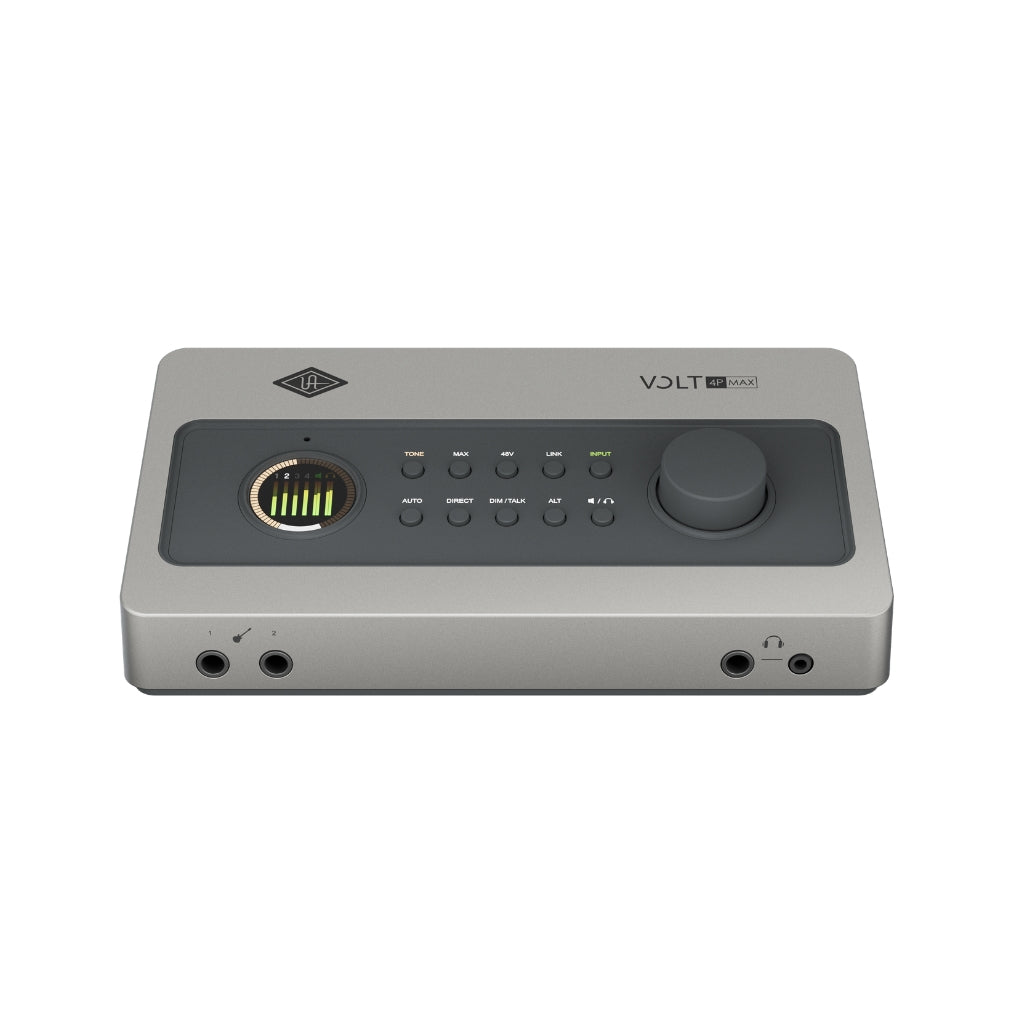

Universal Audio Volt 4P Max USB Audio Interface

The Universal Audio Volt 4P Max is a compact 12-in/6-out USB audio interface designed for recording, mixing, mastering, streaming, and mobile production. It combines 32-bit converters operating at up to 192kHz with four Tone Shaping Preamps, Max Processing, Auto-Gain, Clip Protection, a full-colour Smart Display, speaker switching, ADAT expansion, MIDI connectivity, loopback, and USB bus-powered operation.

Its four Tone Shaping Preamps provide up to 60dB of gain, with three selectable character modes on each channel. Warmth adds the rounded glow of a tube preamp, Focus brings the clarity of a solid-state design, and Shine delivers the open character of a British Class A circuit. Max Processing adds onboard compression with six push-button presets for vocals, guitars, and bass, modelled on the LA-2A and 1176, providing 18 character combinations. Independent 48V phantom power is available on each channel.

Auto-Gain sets recording levels quickly, while Clip Protection helps catch unexpected peaks before they affect a take. The full-colour Smart Display provides at-a-glance feedback on inputs, levels, settings, and gain reduction. Four mic/line combo inputs and two front-panel hi-Z instrument inputs support a range of recording setups, while ADAT or S/PDIF optical input provides up to eight additional digital channels. MIDI In and Out connections provide connectivity for controllers, keyboards, and synths.

The Volt 4P Max also features Main and Alt speaker switching for checking mixes through two sets of stereo monitors, along with built-in loopback and a talkback microphone for recording and communication. It integrates with the UAD Console app and LUNA for session recall and low-latency cue mixes, and includes the UAD Volt Studio bundle with 15+ UAD plugins and instruments, LUNA, Melodyne Essential, and additional software. USB bus-powered operation provides flexibility for desktop and portable recording setups.

Features

• 12-in/6-out USB audio interface — flexible I/O for recording and production
• Four Tone Shaping Preamps — up to 60dB of gain with Warmth, Focus and Shine modes
• 18 character combinations — combines three preamp characters with six Max Processing presets
• Max Processing — onboard compression presets for vocals, guitars and bass, modelled on the LA-2A and 1176
• Independent 48V phantom power — supports condenser microphones on each preamp channel
• Four mic/line combo inputs — supports microphones and line-level sources
• Two front-panel hi-Z inputs — dedicated connections for instruments
• Auto-Gain — sets recording levels quickly for balanced input levels
• Clip Protection — helps prevent unexpected peaks from affecting recordings
• Full-colour Smart Display — provides feedback on inputs, levels, settings and gain reduction
• Main and Alt speaker switching — check mixes through two sets of stereo monitors
• ADAT or S/PDIF optical input — adds up to eight additional digital channels
• MIDI In and Out — connects controllers, keyboards and synths
• Built-in loopback — blends live sources with computer audio for streaming and content creation
• Built-in talkback microphone — convenient communication with performers
• UAD Console and LUNA integration — supports session recall and low-latency cue mixes
• Two headphone outputs — supports tracking with a collaborator
• USB bus-powered — suitable for portable recording setups
• Onboard USB hub — supports peripherals and external MIDI controllers
• UAD Volt Studio bundle included — includes 15+ UAD plugins and instruments, LUNA and additional software
• Rugged construction — designed for long-term use

Specs

• Brand: Universal Audio
• Model: Volt 4P Max
• Type: USB Audio Interface
• Computer Connectivity: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 12 x 6
• Number of Preamps: 4
• Phantom Power: Yes, 48V
• A/D Resolution: 32-bit/192kHz
• Analog Inputs: 4 x XLR-1/4" Combo (Mic/Line), 2 x 1/4" (Instrument)
• Analog Outputs: 6 x 1/4"
• Digital Inputs: 1 x Optical Toslink (ADAT)
• Headphones: 1 x 1/4", 1 x 1/8"
• MIDI I/O: 2 x 1/8" (In/Out)
• USB: 3 x USB-C
• Software: UAD Volt Studio Bundle, LUNA
• OS Requirements - Mac: macOS 12 or later
• OS Requirements - PC: Windows 10 or later
• Bus Powered: Yes
• Tone Shaping Preamps: 4
• Preamp Gain: Up to 60dB
• Max Processing: 6 Compression Presets
• Character Combinations: 18
• ADAT Expansion: Up to 8 Additional Digital Channels
• Auto-Gain: Yes
• Clip Protection: Yes
• Smart Display: Full-Colour
• Speaker Switching: Main and Alt
• Loopback: Yes
• Talkback Microphone: Built-in
• USB Power Input: 5V DC, 2A minimum
• Power Supply: 3A included
• Onboard USB Hub Power: 5V DC, 0.5A maximum
