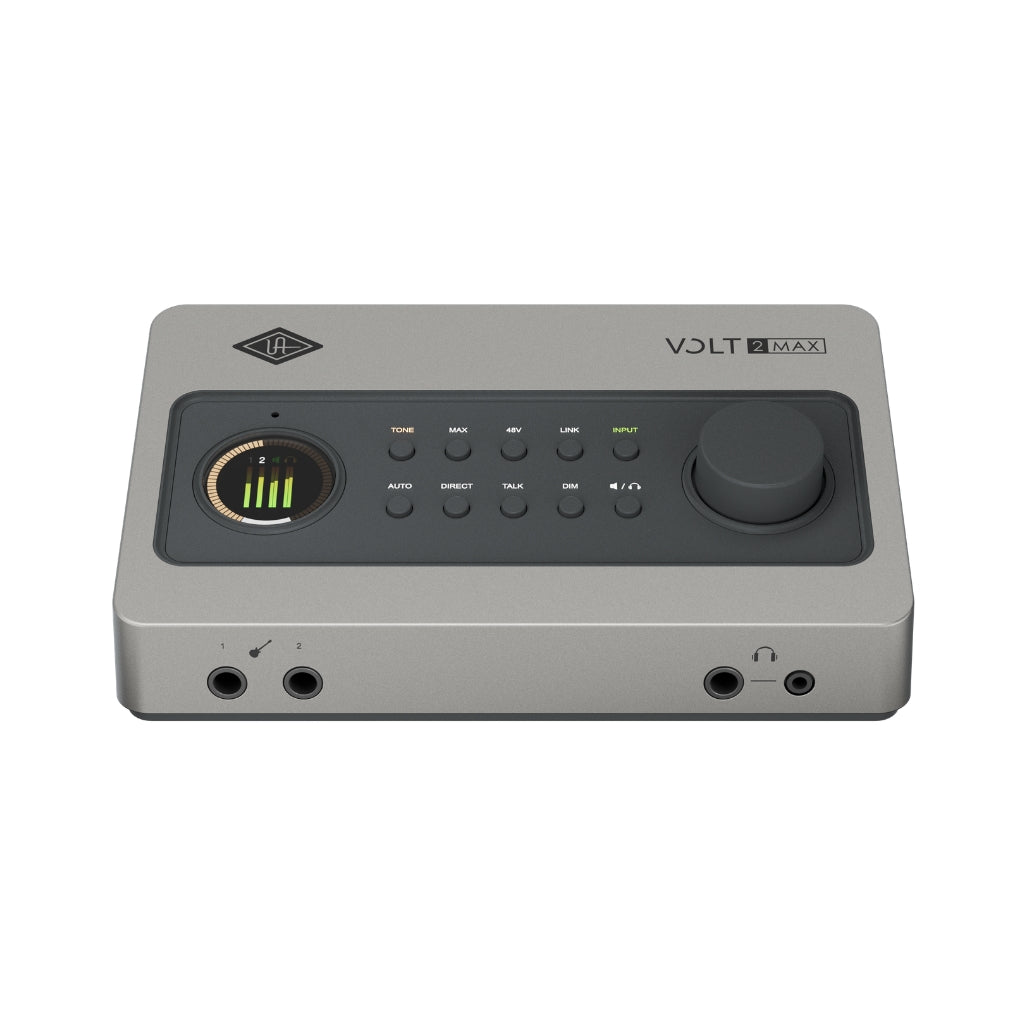

Universal Audio Volt 2 Max USB Audio Interface

The Universal Audio Volt 2 Max is a compact 10-in/4-out USB audio interface designed for professional recording, mixing, mastering, streaming, and mobile production. It combines 32-bit converters operating at up to 192kHz with dual Tone Shaping Preamps, onboard Max Processing, Auto-Gain, Clip Protection, a full-colour Smart Display, loopback, ADAT expansion, MIDI connectivity, and USB bus-powered operation.

The dual Tone Shaping Preamps provide up to 60dB of gain, with three selectable character modes on each channel. Warmth adds the rounded character of a tube preamp, Focus delivers solid-state clarity, and Shine provides the open character of a British Class A circuit. Max Processing adds onboard compression with six push-button presets for vocals, guitars, and bass, with models based on the LA-2A and 1176 for 18 character combinations. Independent 48V phantom power is available on each channel.

Auto-Gain sets recording levels quickly, while Clip Protection helps catch unexpected peaks before they affect a recording. The full-colour Smart Display provides at-a-glance feedback on inputs, levels, settings, and gain reduction. Two mic/line combo inputs and two front-panel hi-Z instrument inputs support simultaneous recording, while ADAT or S/PDIF optical input provides up to eight additional digital channels. MIDI In and Out connections support controllers, keyboards, and synths.

The Volt 2 Max features built-in loopback for blending live sources with computer audio and includes a built-in talkback microphone for communication with performers. It integrates with the UAD Console app and LUNA for session recall and low-latency cue mixes, while two headphone outputs support tracking with a collaborator. The included UAD Volt Studio bundle provides 15+ UAD plugins and instruments, plus LUNA, Melodyne Essential, and additional software.

Features

• 10-in/4-out USB audio interface — flexible recording and production connectivity
• 32-bit/192kHz conversion — high-resolution audio capture and playback
• Dual Tone Shaping Preamps — up to 60dB of gain with Warmth, Focus and Shine modes
• 18 character combinations — combines three preamp characters with six Max Processing presets
• Max Processing — onboard compression presets for vocals, guitars and bass
• Independent 48V phantom power — supports condenser microphones
• Auto-Gain — automatically sets recording levels for quick setup
• Clip Protection — helps prevent unexpected peaks from affecting recordings
• Full-colour Smart Display — visual feedback for inputs, levels, settings and gain reduction
• Two front-panel hi-Z inputs — dedicated instrument connections
• ADAT or S/PDIF optical input — supports up to eight additional digital channels
• MIDI In and Out — connects controllers, keyboards and synths
• Built-in loopback — blends live sources with computer audio
• Built-in talkback microphone — convenient communication with performers
• UAD Console and LUNA integration — supports session recall and low-latency cue mixes
• Two headphone outputs — supports tracking with a collaborator
• USB bus-powered — suitable for portable recording setups
• UAD Volt Studio bundle included — includes 15+ UAD plugins and instruments, LUNA and additional software
• Rugged construction — designed for long-term use

Specs

• Brand: Universal Audio
• Model: Volt 2 Max
• Type: USB Audio Interface
• Computer Connectivity: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 10 x 4
• Number of Preamps: 2
• Phantom Power: Yes, 48V
• A/D Resolution: 32-bit/192kHz
• Analog Inputs: 2 x XLR-1/4" Combo (Mic/Line), 2 x 1/4" (Instrument)
• Analog Outputs: 4 x 1/4"
• Digital Inputs: 1 x Optical Toslink (ADAT)
• Headphones: 1 x 1/4", 1 x 1/8"
• MIDI I/O: 2 x 1/8" (In/Out)
• USB: 3 x USB-C
• Software: UAD Volt Studio Bundle, LUNA
• OS Requirements - Mac: macOS 12 or later
• OS Requirements - PC: Windows 10 or later
• Bus Powered: Yes
• Tone Shaping Preamps: 2
• Preamp Gain: Up to 60dB
• Max Processing: 6 Compression Presets
• Character Combinations: 18
• Loopback: Yes
• Talkback Microphone: Built-in
• Auto-Gain: Yes
• Clip Protection: Yes
• Smart Display: Full-Colour
