SN-TIMELINE-MX

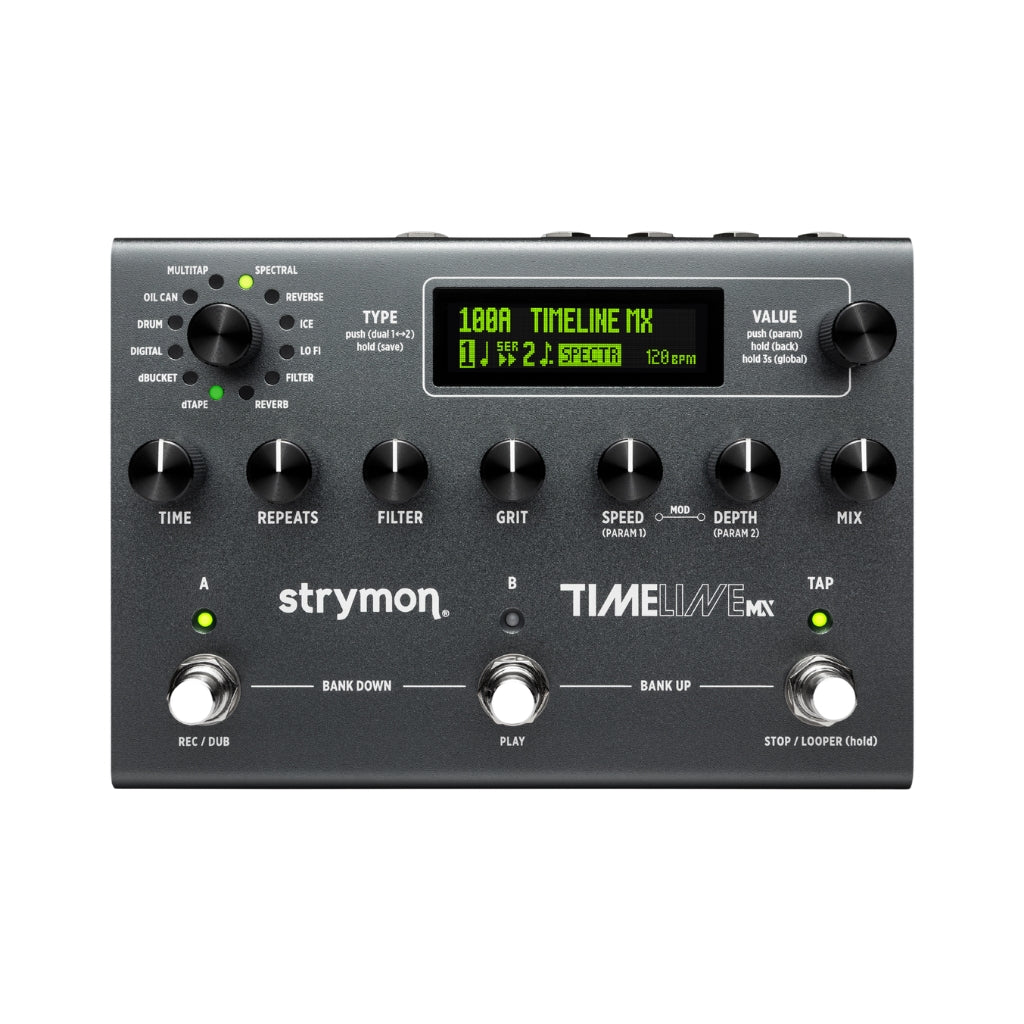

Strymon Timeline MX Multi Digital Delay Pedal
$1,179.00$1,339.00
ⓘ Please call for current stock updates before visiting us in-store.
Pay with
Afterpay Popup
×
Shop now. Pay later.
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase.
For complete terms visit afterpay.com/en-AU/terms-of-service
Shop now. Pay later.
Always interest-free.
Add your favourites to cart
Select Afterpay at checkout
Log into or create your Afterpay account, instant approval decision
Your purchase will be split into 4 payments, payable every 2 weeks
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase.
For complete terms visit afterpay.com/en-AU/terms-of-service
The Most Powerful Delay Pedal Ever!
With the ability to use two effects at once with raw power to spare, TimeLine MX delivers stunning studio-quality delays and a host of new professional features in an elegant and intuitive stage-ready design. Every sound is carefully tuned to react musically to your playing, and every control has been calibrated for an intuitive feel and response. From classic echoes dripping with vintage vibe to captivating and modern sounds that push the envelope, TimeLine MX is full of fresh inspiration.
New Oil Can, Spectral, Drum and Multitap delay engines are paired with significant enhancements to classic TimeLine delay machines. In addition to the 11 onboard delays, a stellar new reverb engine is included, allowing TimeLine MX to be your all-in-one delay plus reverb pedal. In addition to a wealth of new sounds, a 5-minute stereo looper, full MIDI control, intuitive UI and more combine to make TimeLine MX the most powerful delay pedal on the market.
Features
- Tri-core 800 MHz ARM processor
- All new Spectral engine, Strymon's take on granular delay that has a uniquely musical and tempo-focused response
- All new MultiTap delay perfect for creating everything from complex rhythms to bespoke reverbs with per-tap control over pan, level, filtering and more
- All new Reverb engine capable of everything from small rooms to expansive atmospheres.
- New Oil Can engine for authentically-dark, murky and unpredictable echoes
- New Drum engine with multi-head control over playback level, feedback and panning
- In addition to new MX delays, TimeLine classics have been updated and improved
- Use two engines at once with Serial, Parallel or Split audio routing options
- Powerful 5-minute stereo looper with reverse and half-speed playback options
- New 1-button looper mode for quick and easy layering and improvisation via Tap footswitch
- Insert mono or stereo external effects via the internally-repositionable hardware fx loop
- DIN and TRS MIDI I/O and full MIDI integration
- Stereo I/O (inputs use the discrete Class A JFET preamps)
- USB-C for MIDI, software updates and Preset management
- Large OLED display
- Analog dry path for zero latency dry signal
- Requires 2.1mm center-negative 9V DC power supply with 500ma of current (not included)
Specs

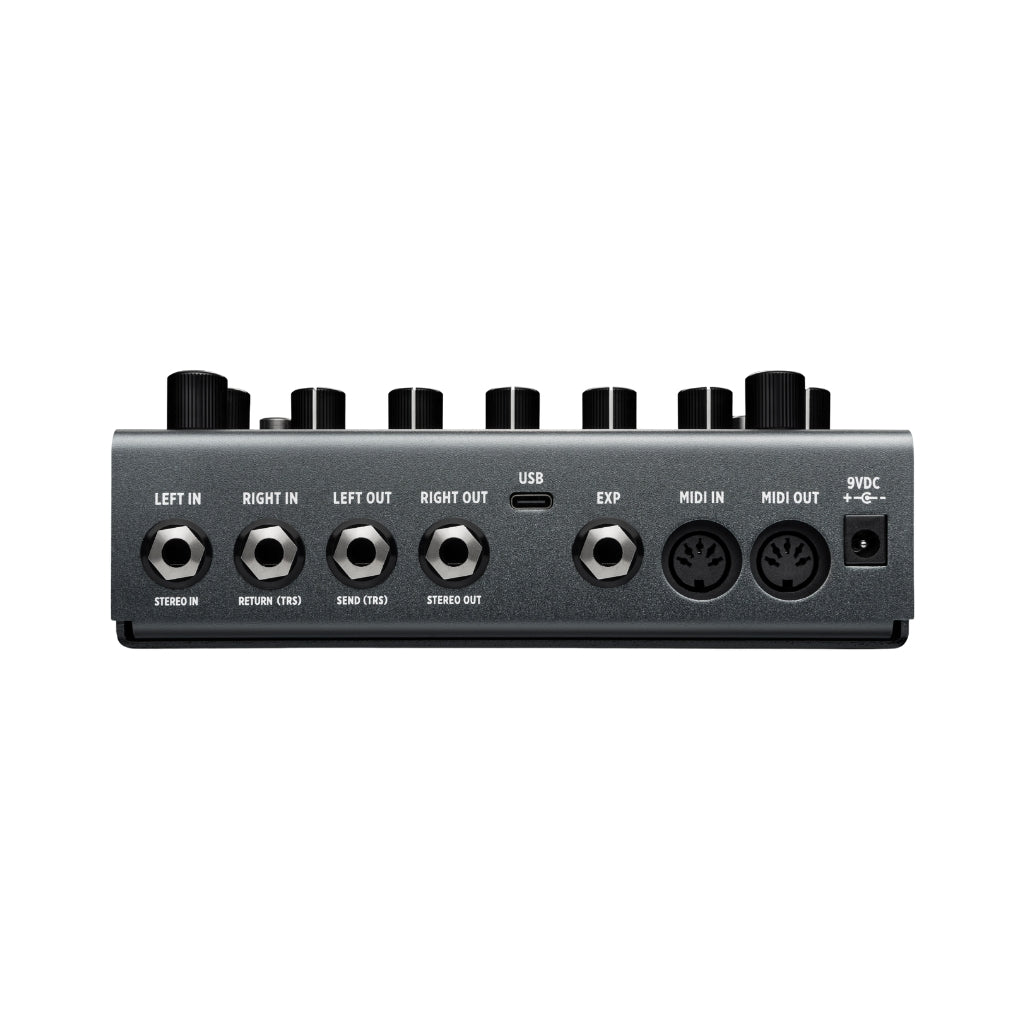

Ins, Outs, and Switches
- Stereo input & output
- Switchable I/O configurations for normal, mono or stereo effects loop, wet/dry, and wet/dry/wet
- Dedicated TAP footswitch for setting Delay Time and accessing one-button looper
- Infinite repeats for delay feedback effects and infinite reverb sustain (press and hold the lit A or B footswitch on the current preset)
- Premium analog circuits with discrete JFET input preamp and low impedance output section
- Selectable input level for instrument and line level signals
- Analog dry path for a zero-latency dry signal that is never converted to digital
- True Bypass (electromechanical relay switching) or selectable Buffered Bypass
- EXP input allows the connection of an optional TRS expression pedal, MultiSwitch, MultiSwitch Plus, or TRS MIDI connection
- USB-C jack can be used for performing firmware updates, for MIDI I/O, and for connection to Strymon Nixie 2 editor software
Audio Quality
- Input Impedance: 1 Meg Ohm
- Output Impedance: 100 Ohm
- A/D & D/A: 24-bit, 96 kHz
- Max Input Level: +10 dBu
- Signal/Noise: 116 dB typical
- High-performance 800MHz tri-core ARM processor
- 32-bit floating point processing
Power Requirements
- Use an adapter with the following rating: 2.1mm, center-negative, 9VDC, 500mA minimum (sold
separately)
More
- Strong and lightweight anodized aluminum chassis
- Dimensions: 5” deep x 7” wide x 1.87” tall (12.7 cm deep x 17.2 cm wide x 4.8 cm tall)
- Designed and built in the USA
Comparison
|
MODEL |
TIMELINE MX |
TIMELINE |
|
Processor |
Tri-core 800 MHz ARM processor |
Single 266 MHz SHARC DSP |
|
Number of Machines At Once |
2 |
1 |
|
All-New MultiTap Delay Engine |
Yes - customize up to 8 unique taps to create complex rhythmic delays and textural reverbs |
No |
|
All-New Spectral Granular Delay Engine |
Yes - experience Strymon's unique, versatile and tempo-focused take on granular synthesis |
No |
|
Oil Can Delay Engine |
Yes - pair with any other delay type or double up Oil Cans for double the vintage warble |
No |
|
Drum Delay Engine |
Yes - customize up to 4 unique drum heads for complex and rhythmic delays |
No |
|
Dedicated Reverb Engine |
Yes - create everything from intimate rooms to impossibly long atmospheric ambiences |
No |
|
Tremolo Delay |
Yes - now available within the updated and highly-customizeable Filter delay engine |
Yes - using Trem delay engine only |
|
Swell Functionality |
Yes - now a unified Parameter available to use in conjunction with all delay types |
Yes - using Swell delay engine only |
|
Ducking Functionality |
Yes - now a unified Parameter available to use in conjunction with all delay types |
Yes - using Duck delay engine only |
|
Classic TimeLine Delays |
Yes - in addition to new types, classic TimeLine delays are available via the Voice Paramater |
Yes |
|
New 1-Button Quick Looper Mode |
Yes - assign the Tap footswitch (or MiniSwitch) to be a dedicated, always-on 1-button looper |
No |
|
Dedicated Looper Mode |
Yes - with multiple routing options and a highly-visible UI for improved stage performance |
Yes |
|
Maximum Loop Length |
5 Minutes |
30 Seconds |
|
Internal Audio Routing Options |
Mono In / Mono Out, Mono In / Stereo Out Stereo In / Stereo Out + Series, Parallel, Split (In Dual Mode) |
Mono In / Mono Out Mono In / Stereo Out Stereo In / Stereo Out |
|
Audio Pan Control |
Yes - freely shift your delayed signal(s) across the stereo field |
No |
|
Audio In / Out |
Stereo In/Out, Stereo Send/Return |
Stereo In / Out |
|
Discrete Class A JFET Preamps |
Yes |
No |
|
MIDI In / Out |
DIN, TRS and USB MIDI |
DIN |
|
USB |
Yes / USB-C |
No |
|
External Hardware Effects Loop |
Yes - complete with multiple routing and placement options. |
Yes |
|
External Control |
Yes - using MiniSwitch, MultiSwitch or MultiSwitch Plus |
Yes - using MultiSwitch or MultiSwitch Plus |
|
Display Type |
OLED |
LED |
|
Dimensions |
7" wide x 5" deep |
6.75" wide x 5.1" deep |
