    EVH 5150™ Series Deluxe QM, Ebony Fingerboard, Purple Daze


    Engineered for speed, comfort and full-throttle attitude, the reimagined 5150™ Series Deluxe is an iconic blast from the past that blends both throwback and modernized features.

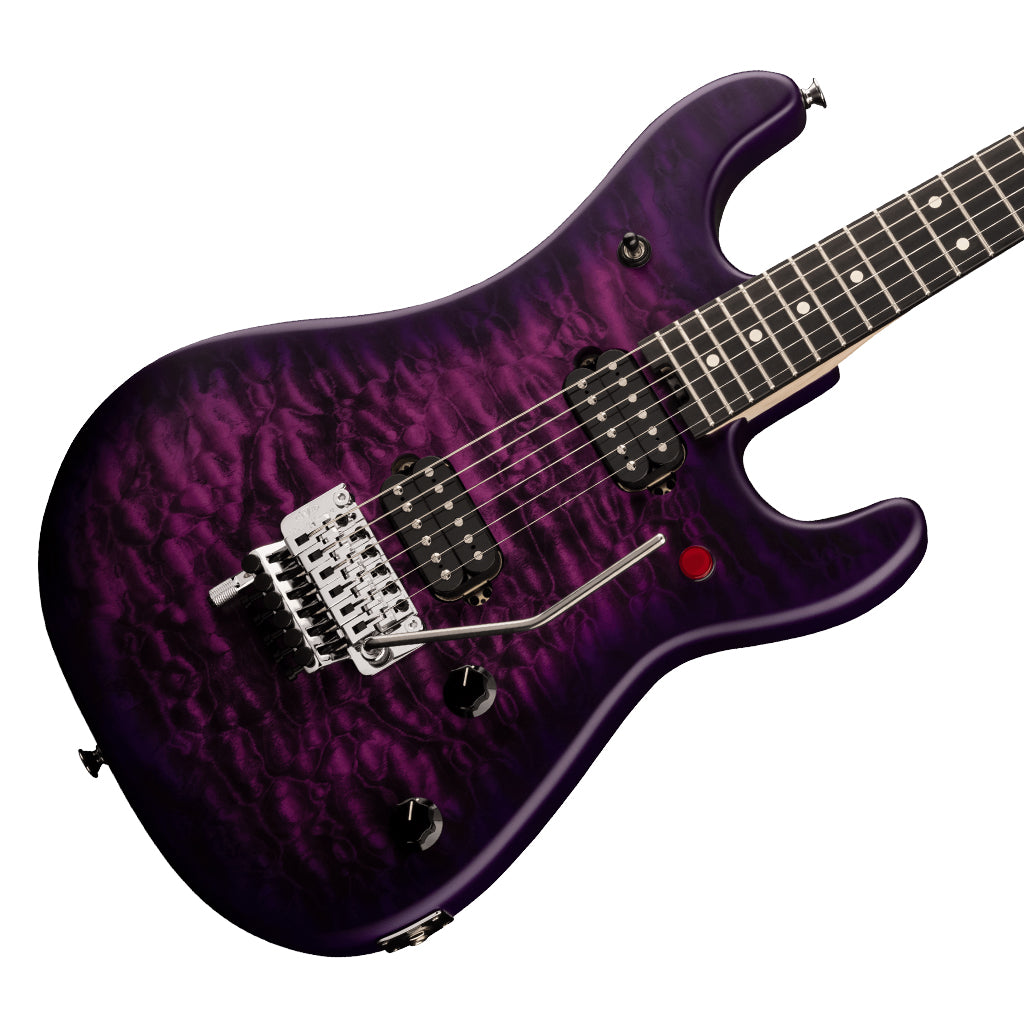

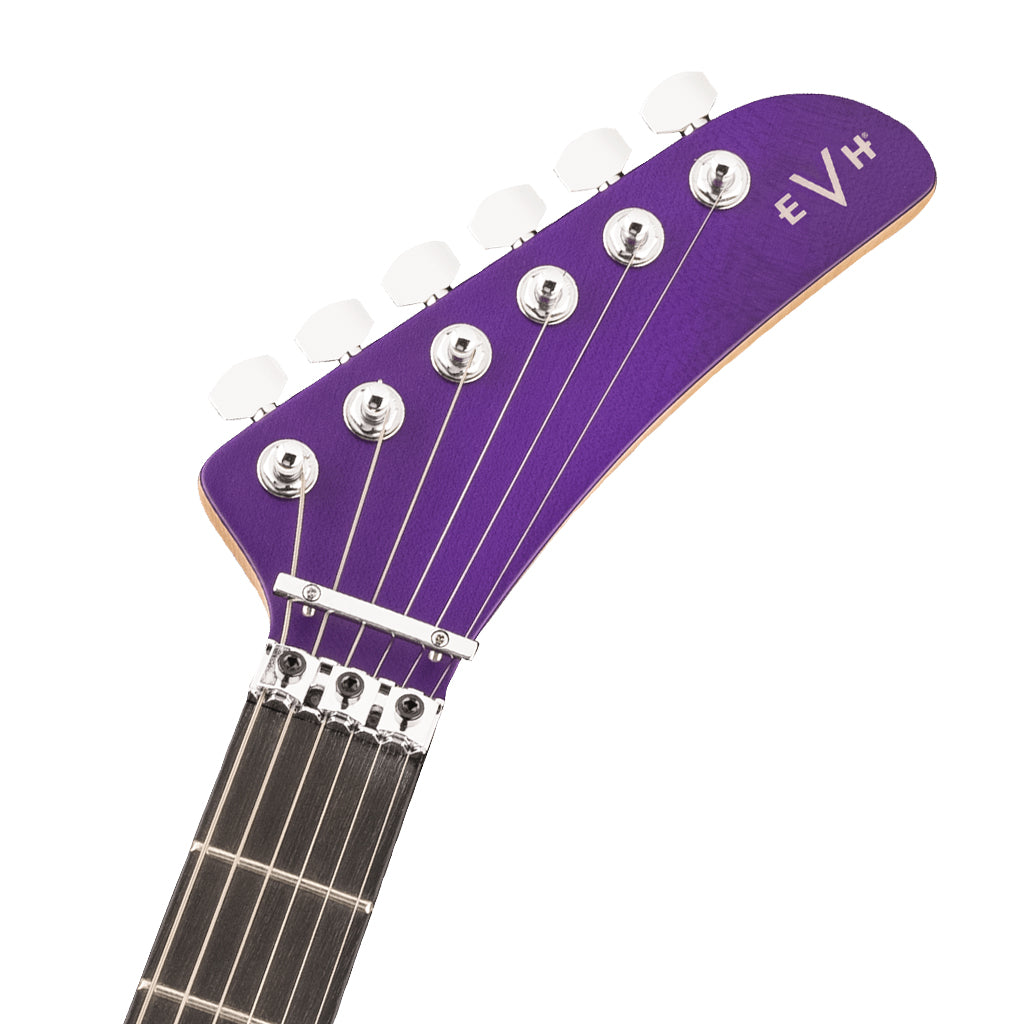

    Like its predecessor, the 5150 Deluxe QM features a modified Strat®-style basswood body with a quilt maple top and deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

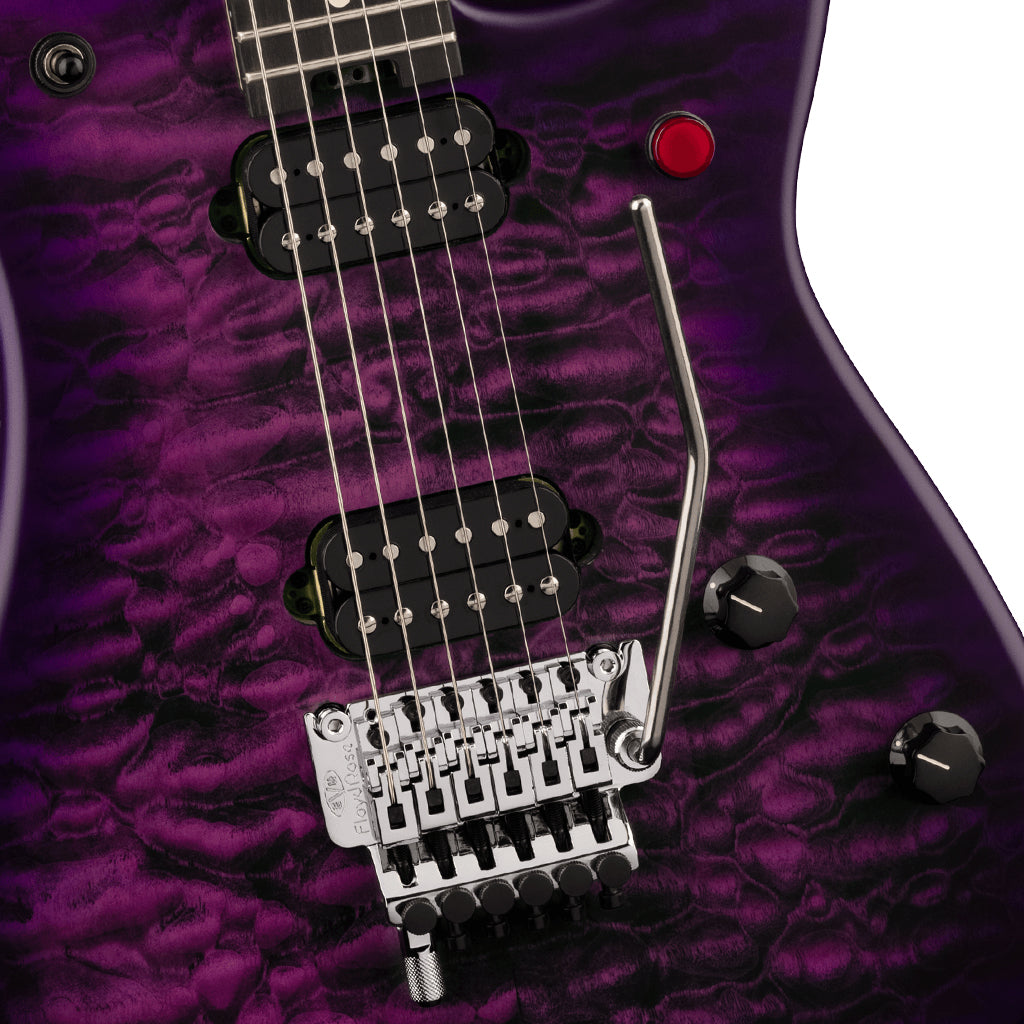

    While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with an HH pickup configuration controlled by a three-way toggle on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

    Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

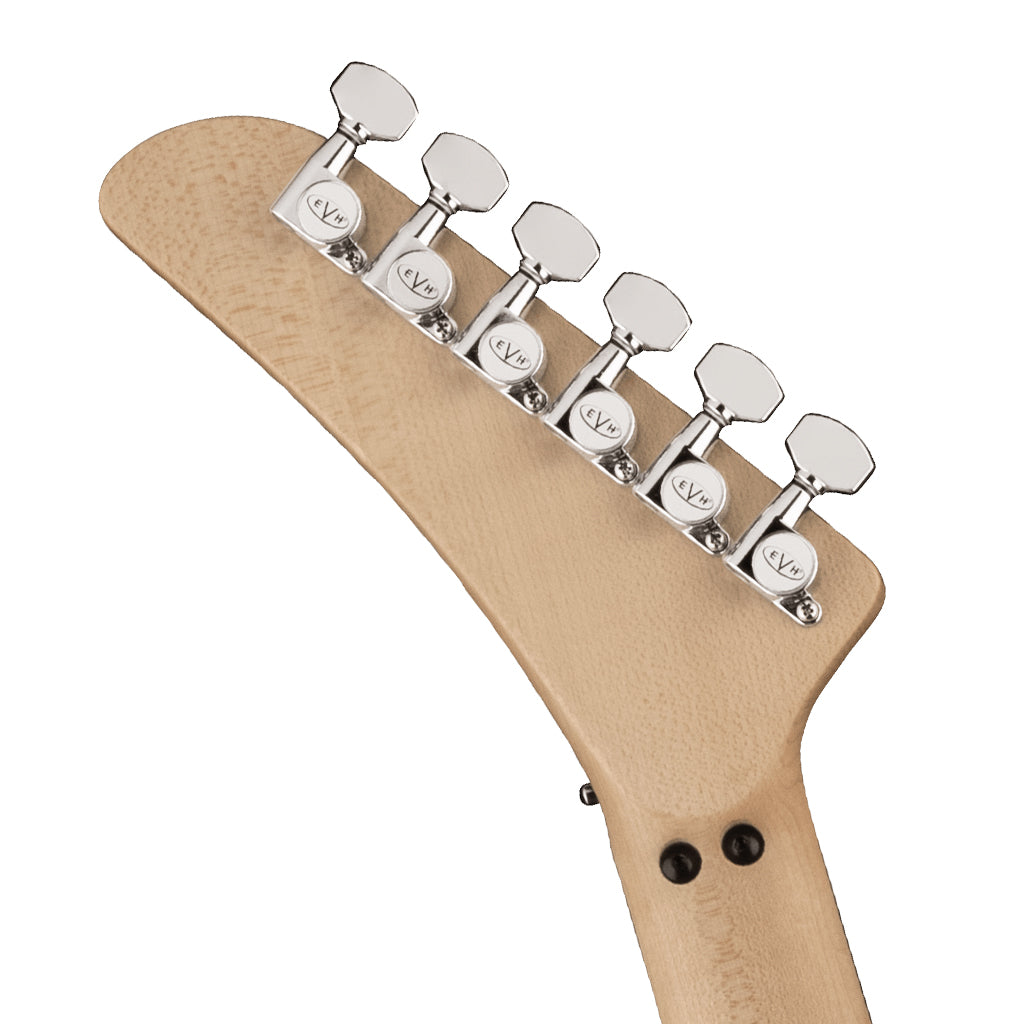

    A stylized modern spin on a fan favorite, the 5150 Deluxe is sure to stun with its rippling quilt maple top dressed in a vivid Purple Daze finish with all-chrome hardware, including the EVH-branded Gotoh® tuning machines.

    Specs

    Type

    Solid Body

    Colour

    Purple Daze

    Orientation

    Right Handed

    Number of Strings

    6

    Body Shape

    5150®

    Body Material

    Quilt Maple Top; Basswood Body

    Body Finish

    Satin Urethane

    Neck Material

    Quartersawn Maple

    Neck Shape

    EVH® Modified C Backshape

    Neck Finish

    Hand-Rubbed Satin Urethane

    Fretboard Material

    Ebony

    Number of Frets

    22

    Fretboard Inlays

    Cream Dot; Cream Side Dots

    Fret Size

    Jumbo

    Fretboard Radius

    12-16 Compound Radius (304.8 mm to 406.4 mm)

    Nut Material

    Floyd Rose® R3 Locking

    Nut Width

    1.685 (42.8 mm)

    Neck Pickups

    Direct Mount EVH® Wolfgang® Humbucking

    Bridge Pickups

    Direct Mount EVH® Wolfgang® Humbucking

    Controls

    1 x Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, 1 x Tone (250K EVH® Bourns® High Friction Pot), 3-Position Pickup Selector, Kill Switch

    Bridge

    Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

    Tuners

    EVH®-Branded Gotoh®

    Strings

    EVH® Nickel Plated Steel (.009-.042 Gauges)

    Case/ Bag

    Not Included: Optional EVH® Striped Hardshell (p/n 022-6100-506); Optional EVH® Black Gig Bag (p/n 022-1512-006)

    EVH 5150™ Series Deluxe QM, Ebony Fingerboard, Purple Daze

    $1,799.00
