EVL-ZLX-15

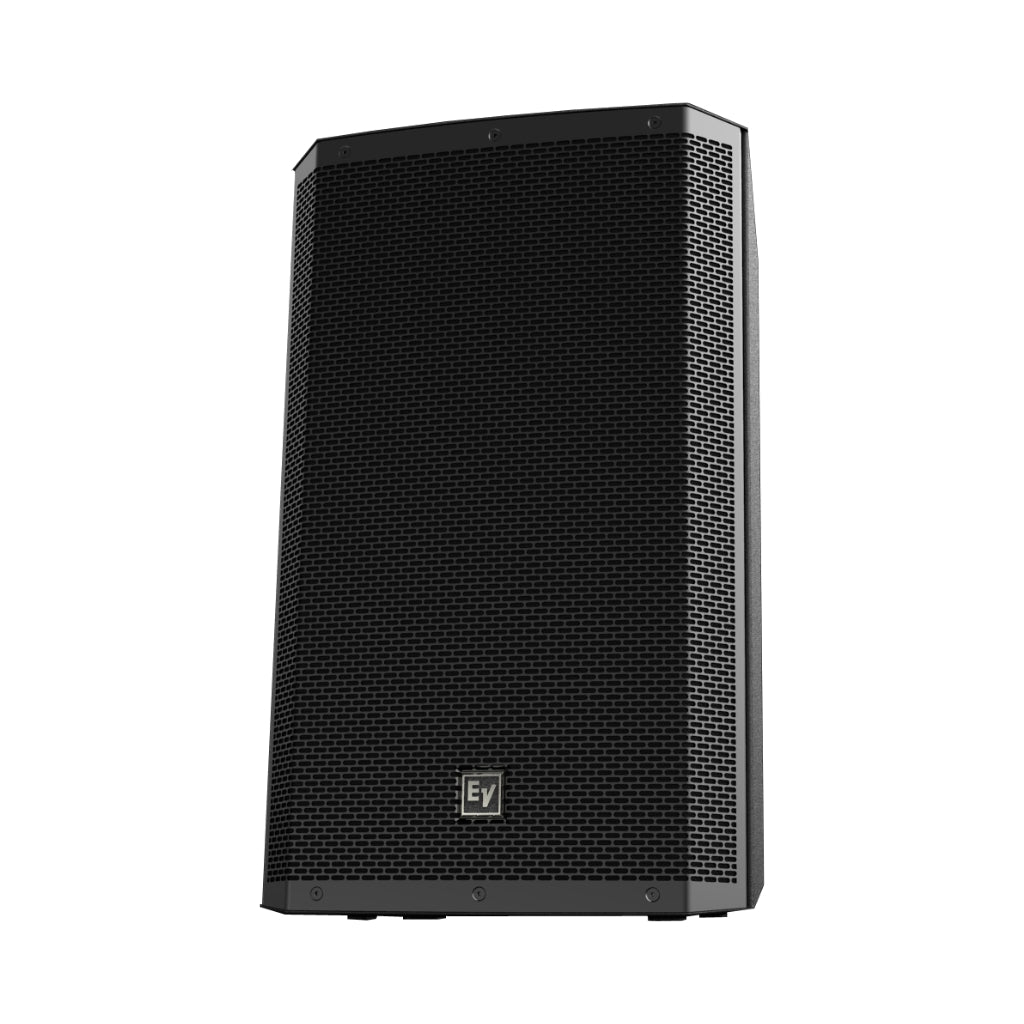

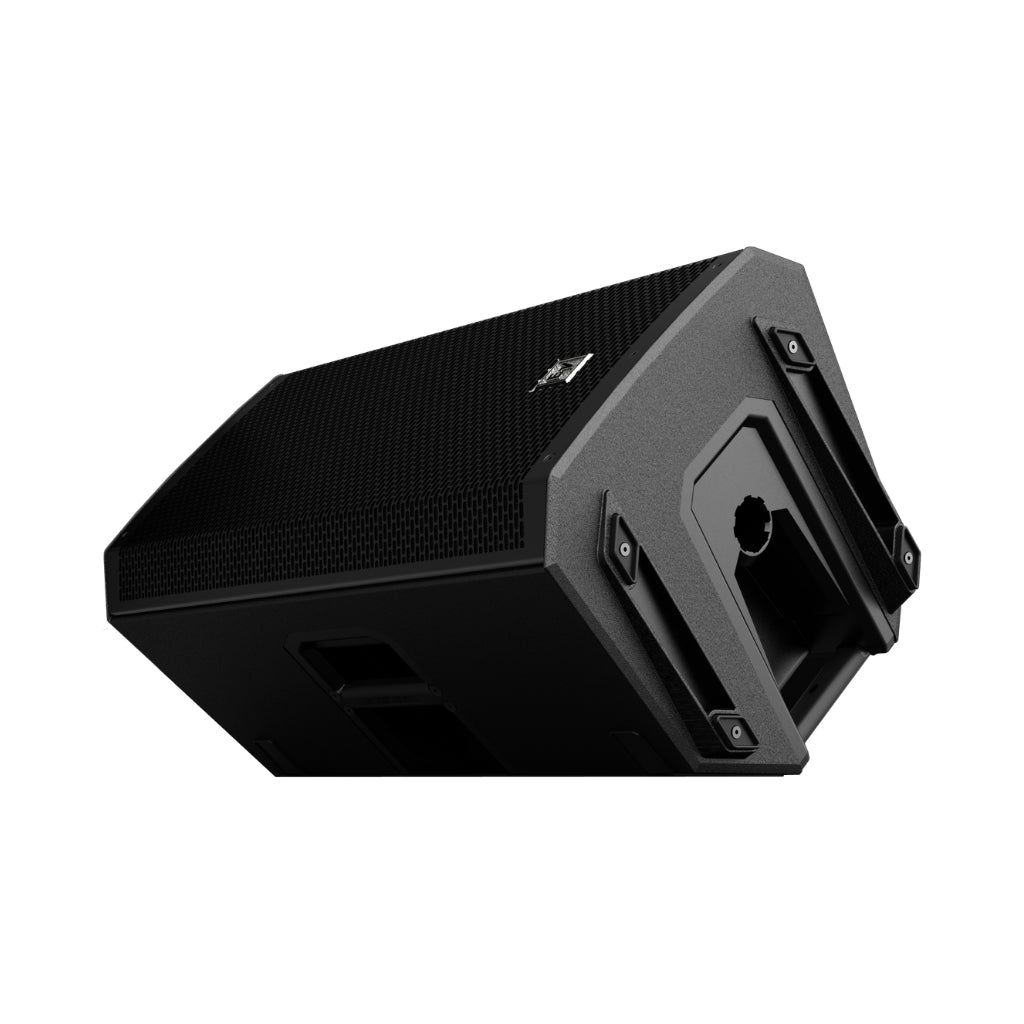

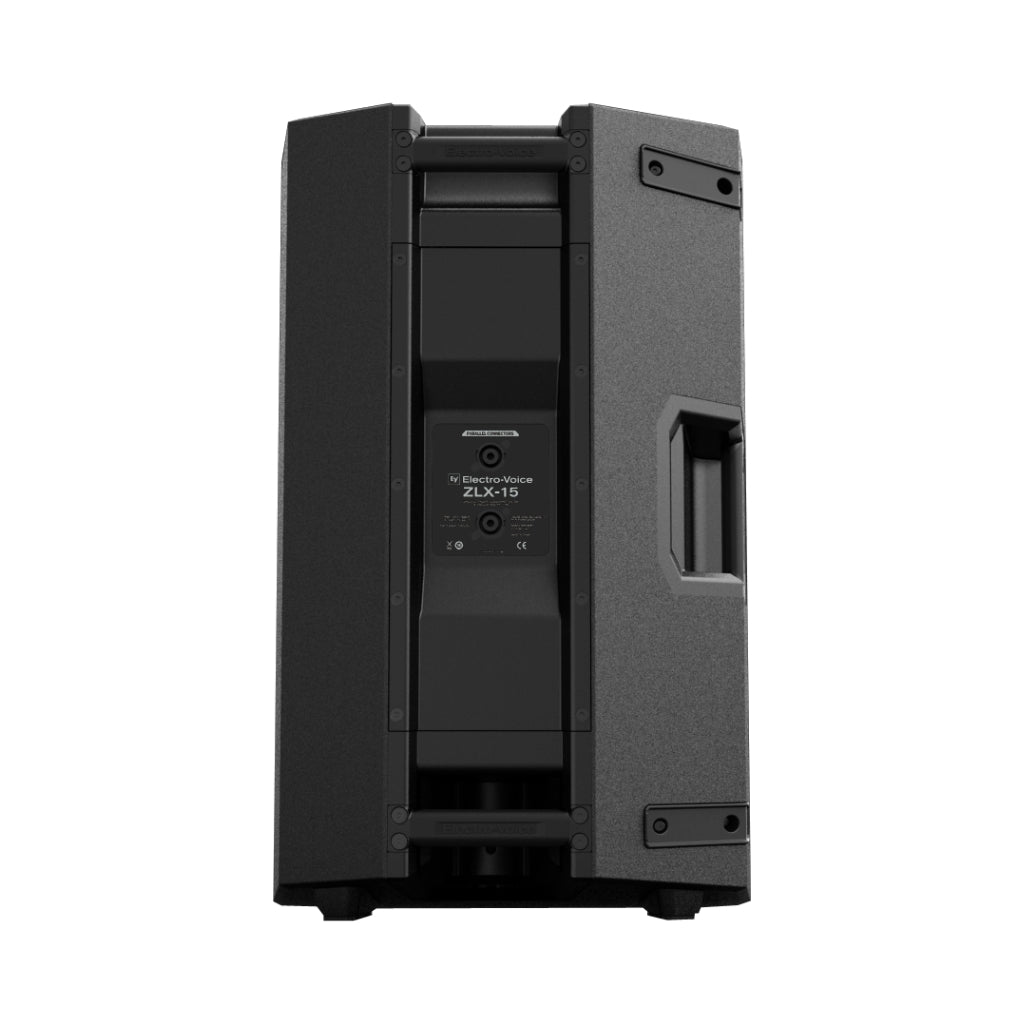

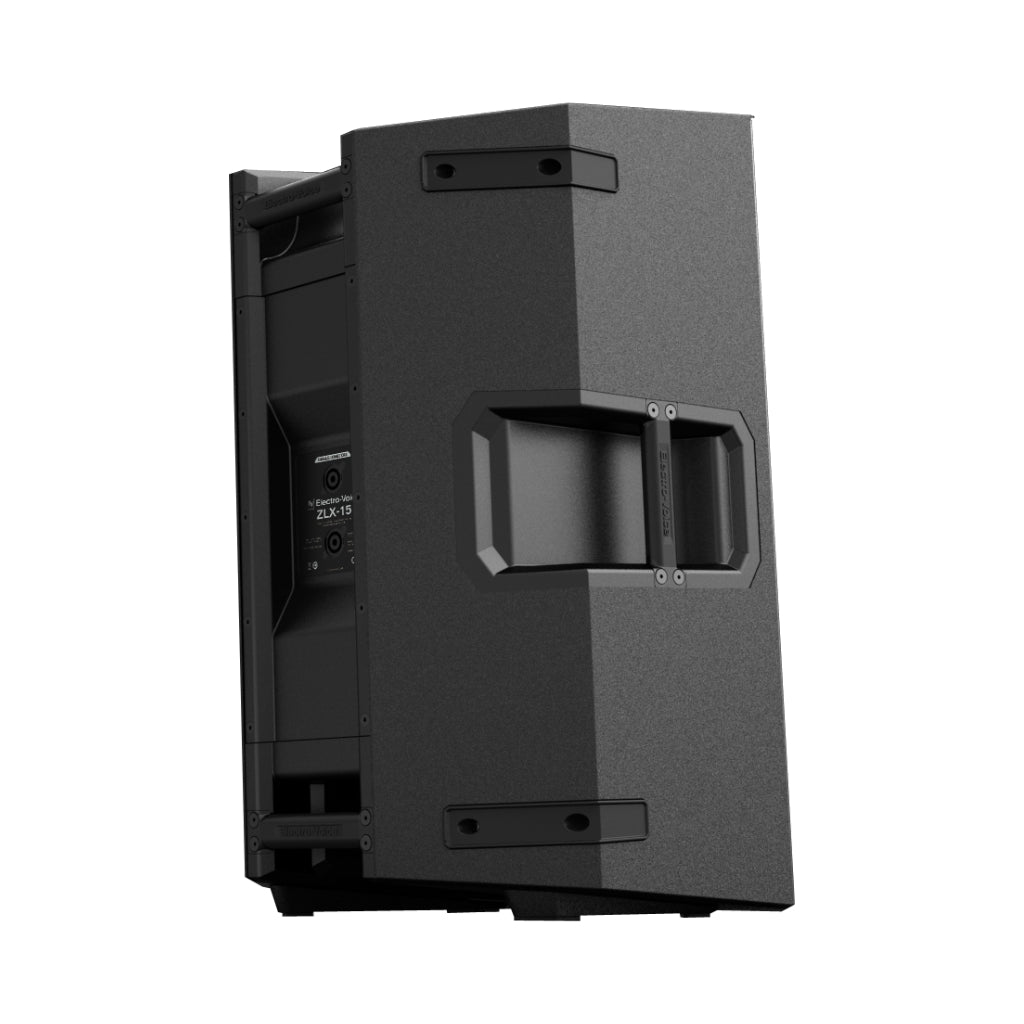

Electro-Voice ZLX-15 1,000-watt 15-inch Passive Speaker


ⓘ Please call for current stock updates before visiting us in-store.


Pay with Afterpay Popup
AMEX Logo Mastercard Logo ZipPay Logo Apple Pay Logo Visa Logo Paypal Logo

The Electro-Voice ZLX-15 Passive Speaker delivers the trusted audio quality of EV components in a versatile, high-performance package. Engineered to exacting standards, this speaker is perfect for larger applications, whether used alone or paired with a subwoofer. Its 15” woofer provides extended low-frequency response, while the 1.5” titanium compression driver ensures clear, intelligible highs. With a frequency range of 44 Hz – 20 kHz and 250 W continuous / 1000 W peak power handling, the ZLX-15 is ready for demanding live sound and portable PA setups.

Designed for wide and even coverage, the speaker offers 90° horizontal by 60° vertical dispersion, a sensitivity of 96 dB SPL, and maximum SPL of 126 dB. The rugged polypropylene enclosure and 18-gauge steel grille with black powder coat protect the speaker while keeping it lightweight and portable at just 36.5 lbs. Dual NL4 connectors make it easy to daisy-chain multiple units for larger setups.

Features

  • 15” woofer for deep low-frequency response
  • 1.5” titanium high-frequency compression driver
  • Frequency response: 44 Hz – 20 kHz
  • Power handling: 250 W continuous / 1000 W peak
  • Sensitivity: 96 dB SPL, Maximum SPL: 126 dB
  • Coverage: 90° horizontal x 60° vertical
  • Rugged polypropylene enclosure with 18-gauge steel grille
  • Dual NL4 connectors for easy setup
  • Lightweight: 36.5 lbs (16.6 kg)

Specs

  • Type: Passive Speaker
  • LF Transducer: EVS-15L, 15-inch woofer
  • HF Transducer: DH-1K titanium compression driver
  • Crossover Frequency: 1.7 kHz
  • Nominal Impedance: 8 Ω
  • Minimum Impedance: 7 Ω
  • Connectors: Dual NL4
  • Enclosure Material: Polypropylene
  • Grille: 18-gauge steel, black powder coat
  • Dimensions (H x W x D): 27" x 17" x 15" (685 mm x 423 mm x 383 mm)
  • Net Weight: 36.5 lbs (16.6 kg)
  • Shipping Weight: 48.3 lbs (22.0 kg)
  • Recommended High-Pass Frequency: 40 Hz
  • Maximum SPL: 126 dB
  • Manufacturer: Electro-Voice
