28/G12-100-16

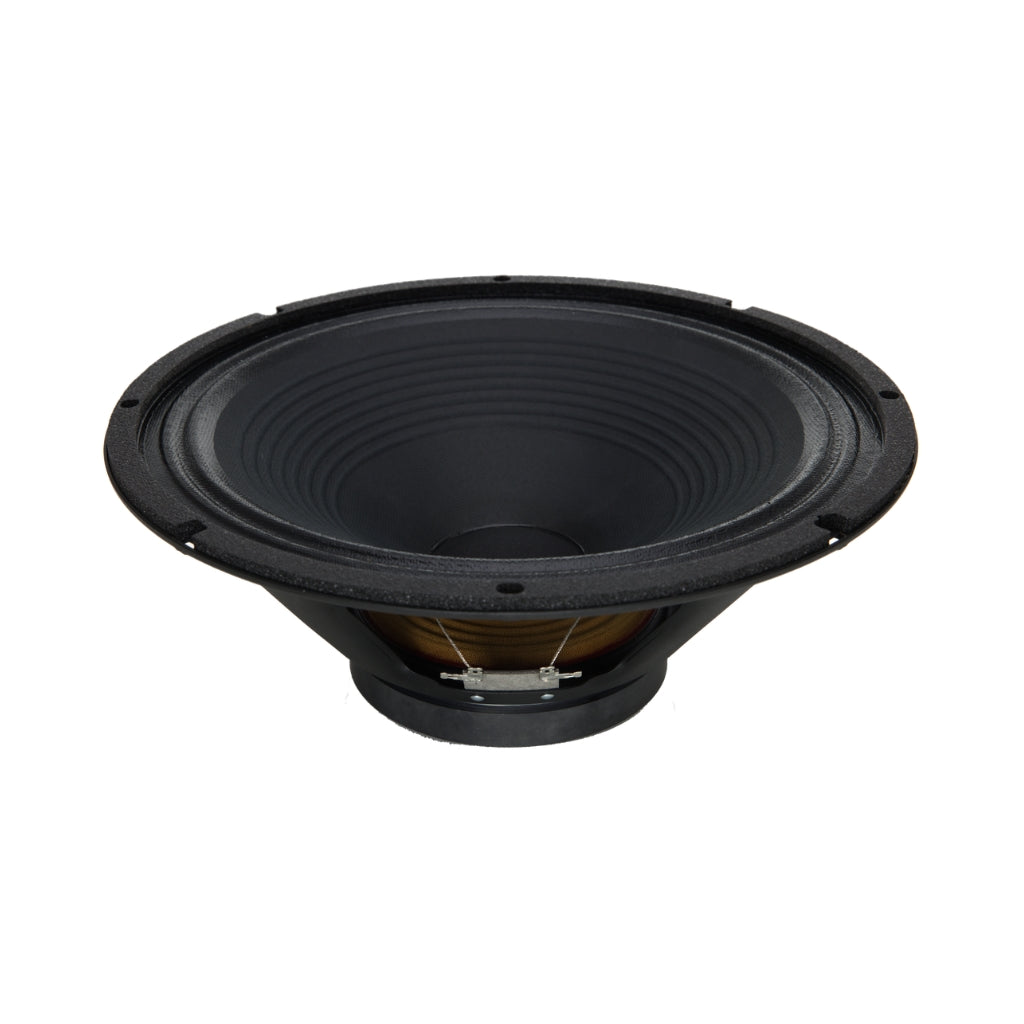

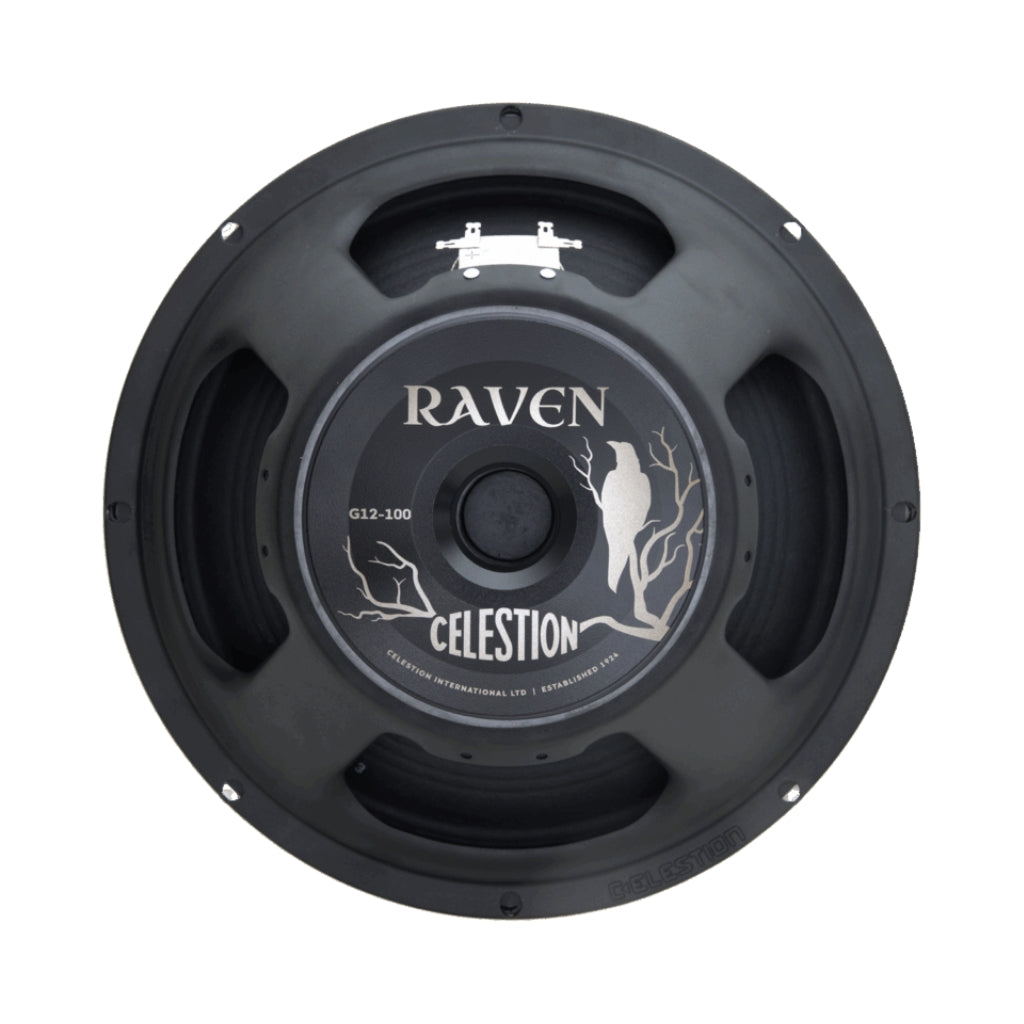

Celestion Raven T6783 12" Raven 100-Watt 16 Ohm Speaker


ⓘ Product ETA: November 2026


Pay with Afterpay Popup AMEX Logo Mastercard Logo ZipPay Logo Apple Pay Logo Visa Logo Paypal Logo

Boasting a formidable 100W power rating, and a new-design, low-weight ceramic magnet structure, the Raven is engineered to handle crushing lead lines and seismic low-end riff-work. Beyond the raw power lies a truly premium tone, delivering a detailed mid-range punch, brooding highs, and a firm, authoritative low end.

The Raven is defined by its ability to deliver tons of tone,  while remaining light as a feather. At the heart of this capability is a reimagined ceramic magnet assembly; a unique new motor structure that massively lowers the speaker’s overall weight—to just 2.5 kg (5.5 lb)—without compromising the huge magnetic forces required to power such a gargantuan tone machine.

Features

  • Nominal Diameter: 305mm / 12in

  • Power Rating: 100W

  • Rated Impedance: 16 ohm

  • Sensitivity: 100dB

  • Chassis Type: Pressed steel

  • Magnet Type: Ceramic

  • Magnet Weight: 0.85kg / 30oz

  • Voice Coil Diameter: 2in / 50mm

  • Voice Coil Material: Round copper

  • Frequency Range: 70–5000Hz

  • Resonance Frequency (Fs): 72Hz
