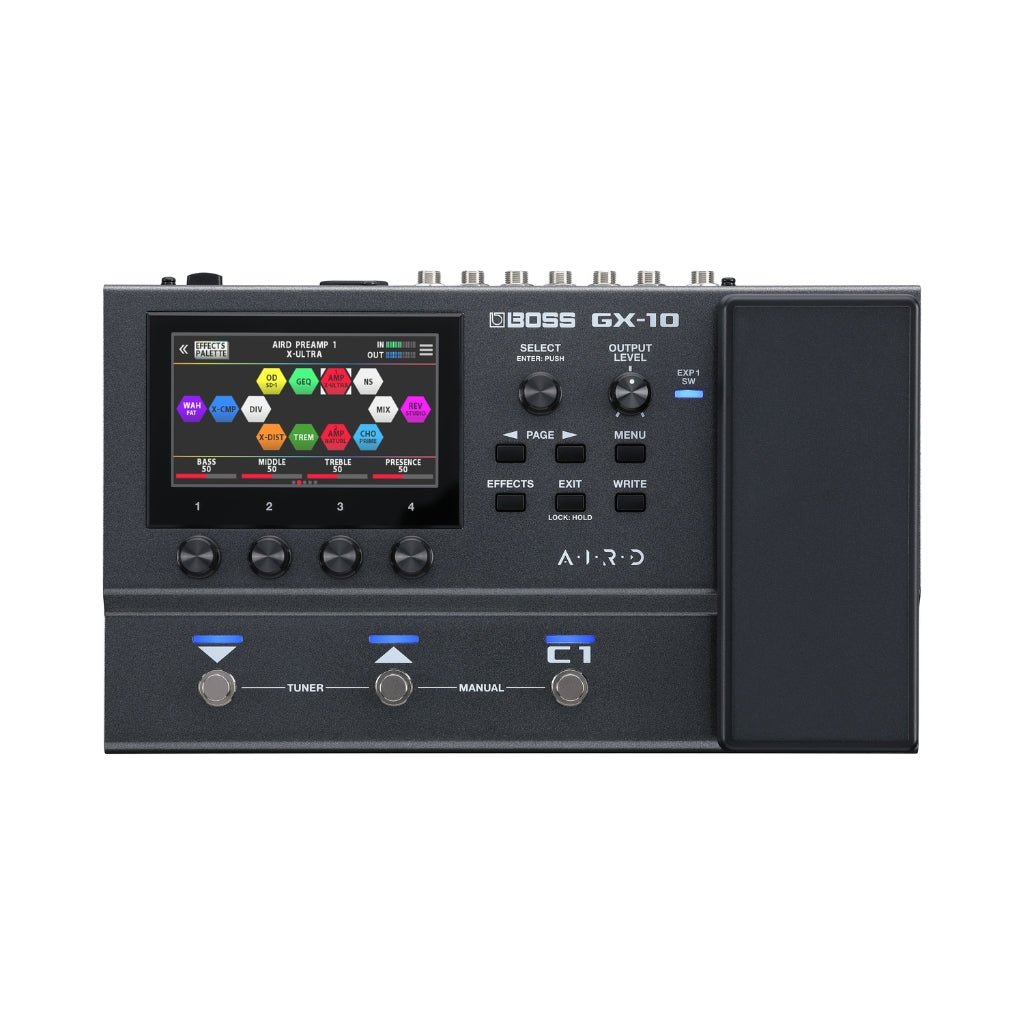

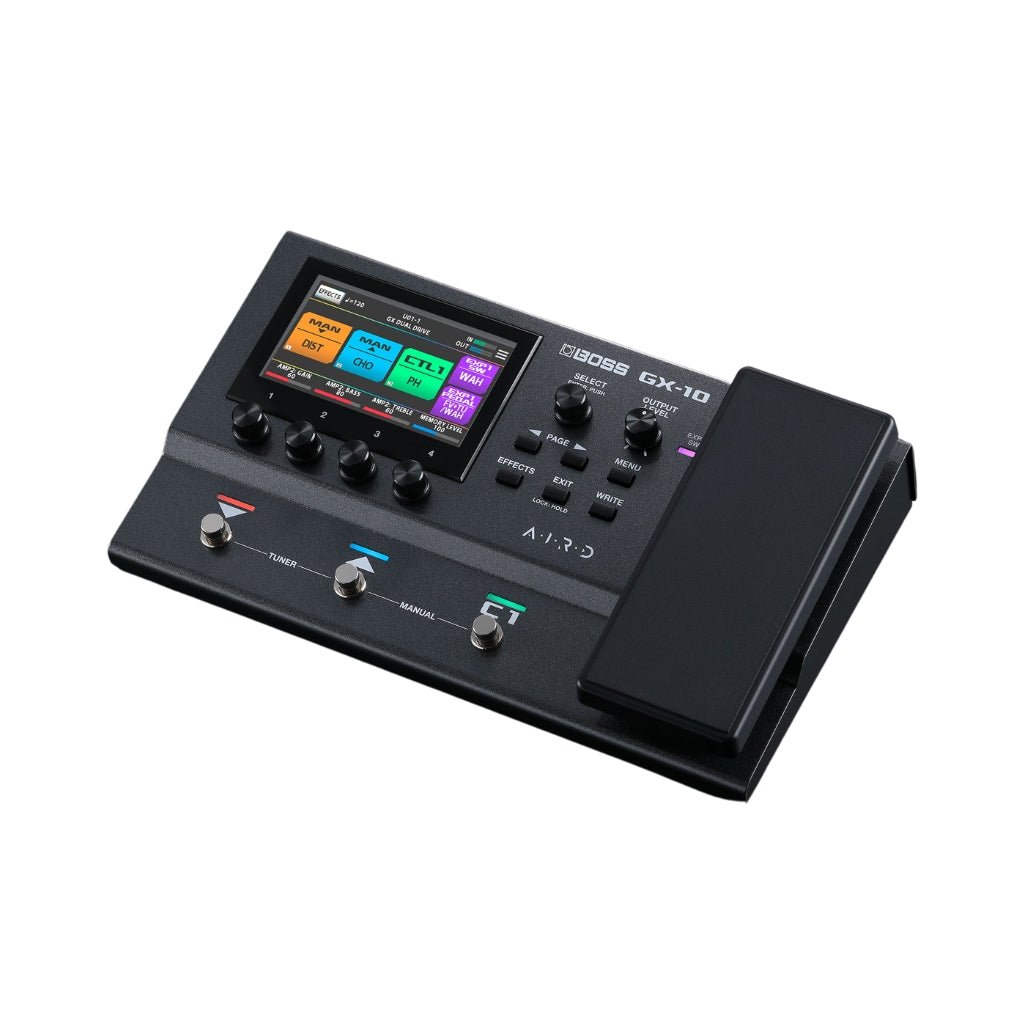

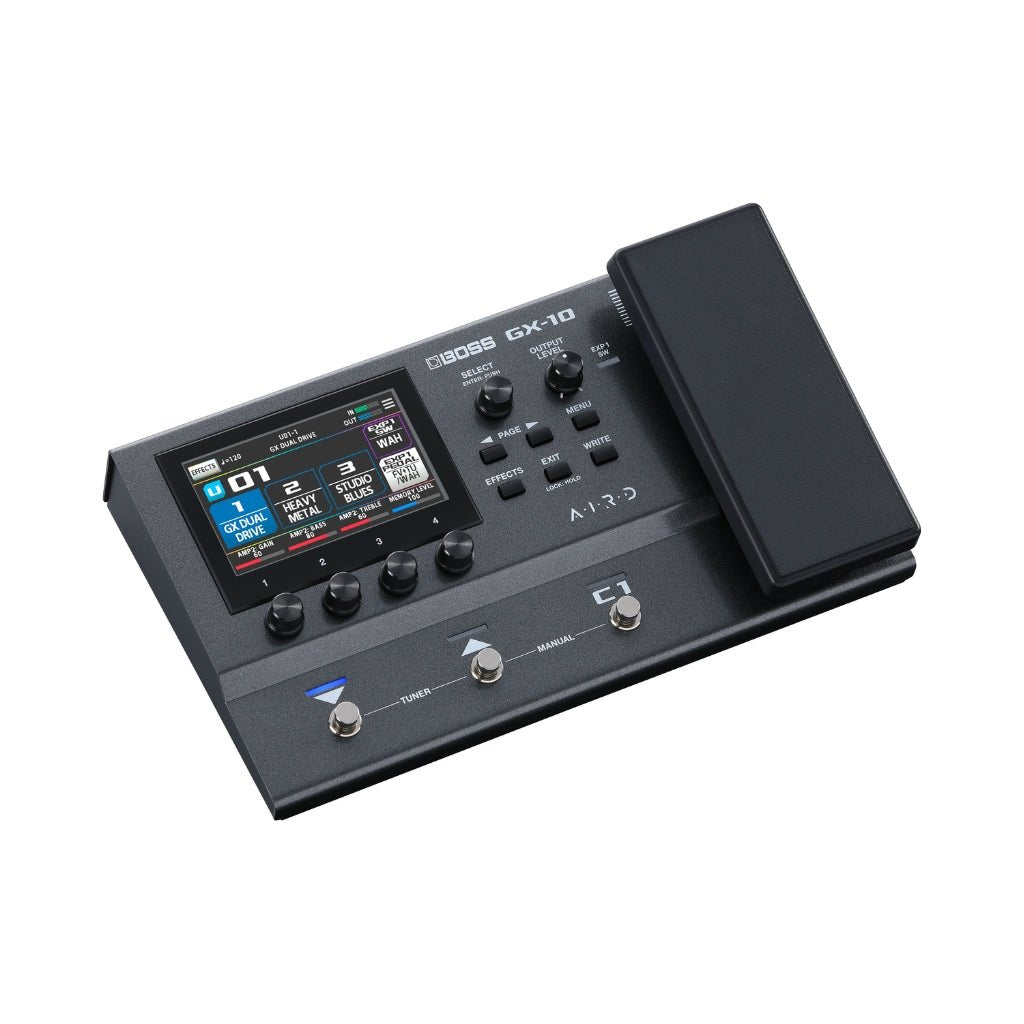

Boss GX10 Guitar Effects Processor

Sampling Frequency

• 48 kHz

AD Conversion

• 24 bits + AF method
• *AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

• 32 bits

Processing

• 32-bit floating point

Effects

• 170 Types

Maximum Number of Effects

• 15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)

*depending on the circumstances

Memories

• 198 (User) + 99 (Preset)

Phrase Loop

• 38 sec. (MONO)
• 19 sec. (STEREO)

Tuner Internal Detection

• +/-0.1 cent

Nominal Input Level

• INPUT: -10 dBu
• RETURN: -10 dBu

Maximum Input Level

• INPUT: +7 dBu
• RETURN: +7 dBu

Input Impedance

• INPUT: 1 M ohm
• RETURN: 1 M ohm

Nominal Output Level

• OUTPUT (L/MONO, R): -10 dBu
• PHONES: -10 dBu
• SEND: -10 dBu

Output Impedance

• OUTPUT (L/MONO, R): 1 k ohm
• PHONES: 44 ohms
• SEND: 1 k ohm

Recommended Load Impedance

• OUTPUT (L/MONO, R): 10 k ohms or greater
• PHONES: 44 ohms or greater
• SEND: 10 k ohms or greater

Controls

• DOWN switch, UP switch, CTL1 switch, POWER switch, EXP1 switch,
• PAGE button, MENU button, EFFECTS button, EXIT button, WRITE button, 1-4 knobs, SELECT knob, OUTPUT LEVEL knob,
• EXP1 pedal

Display

• Color Graphic LCD (480 x 272 dots) Touch screen

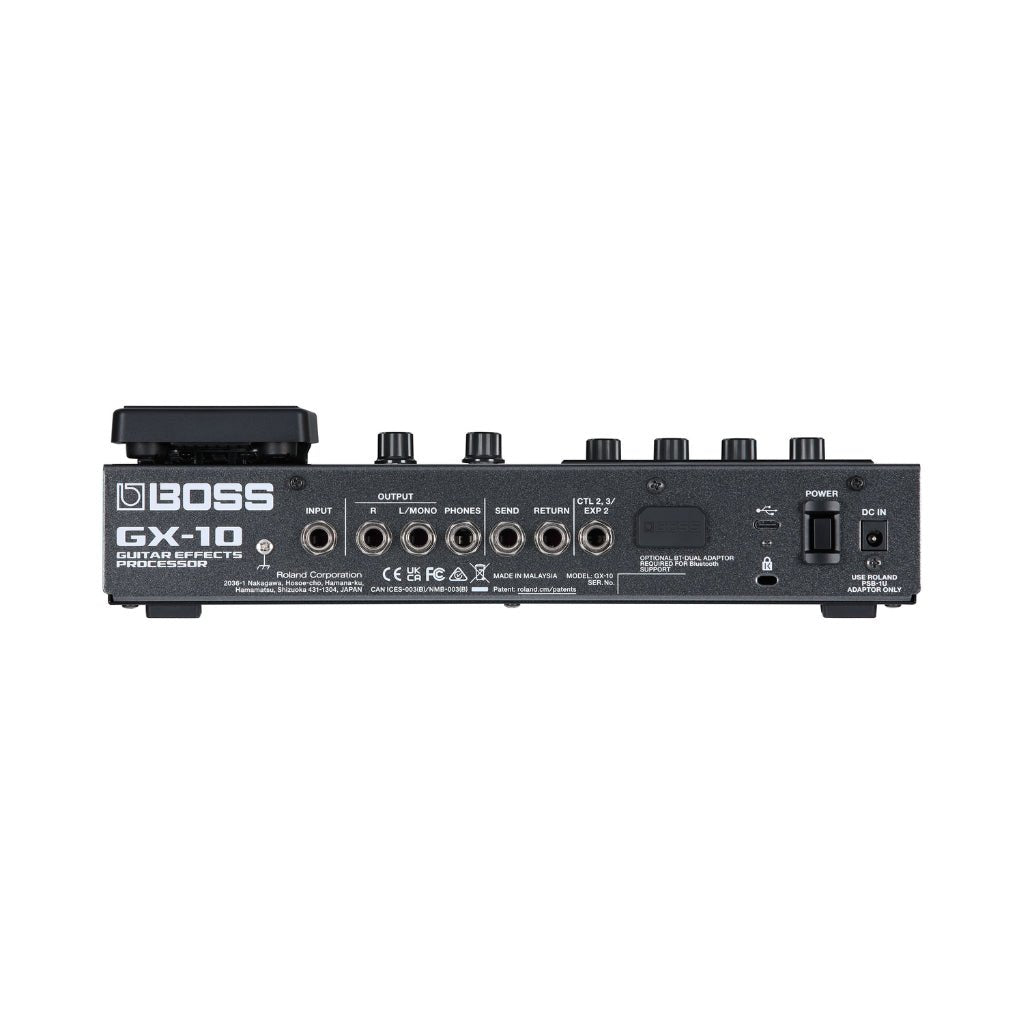

Connectors

• INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone type
• CTL2,3/EXP2 jack: 1/4-inch TRS phone type
• USB COMPUTER port: USB Type-C(R)
• Bluetooth ADAPTOR connector: Dedicated connector
• DC IN jack

Power Supply

• AC adaptor

Current Draw

• 600 mA

Power consumption when in OFF mode (when the power automatically turns off): 0.0 W

Dimensions

• 300 (W) x 183 (D) x 74 (H) mm
• 11-13/16 (W) x 7-3/16 (D) x 2-15/16 (H) inches

Maximum height

• 300 (W) x 183 (D) x 96 (H) mm
• 11-13/16 (W) x 7-3/16 (D) x 3-3/4 (H) inches

Weight

• 2.2 kg
• 4 lbs 14 oz

Accessories

• AC adaptor (PSB-1U + AC Cord Set)
• Owner's manual
• Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

• Footswitch: FS-5U, FS-5L, FS-6, FS-7
• Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
• Bluetooth(R) Audio MIDI Dual Adaptor (Model BT-DUAL)
• Wireless MIDI Expression Pedal: EV-1-WL
• Wireless Foot Switch: FS-1-WL

*0 dBu = 0.775 Vrms
