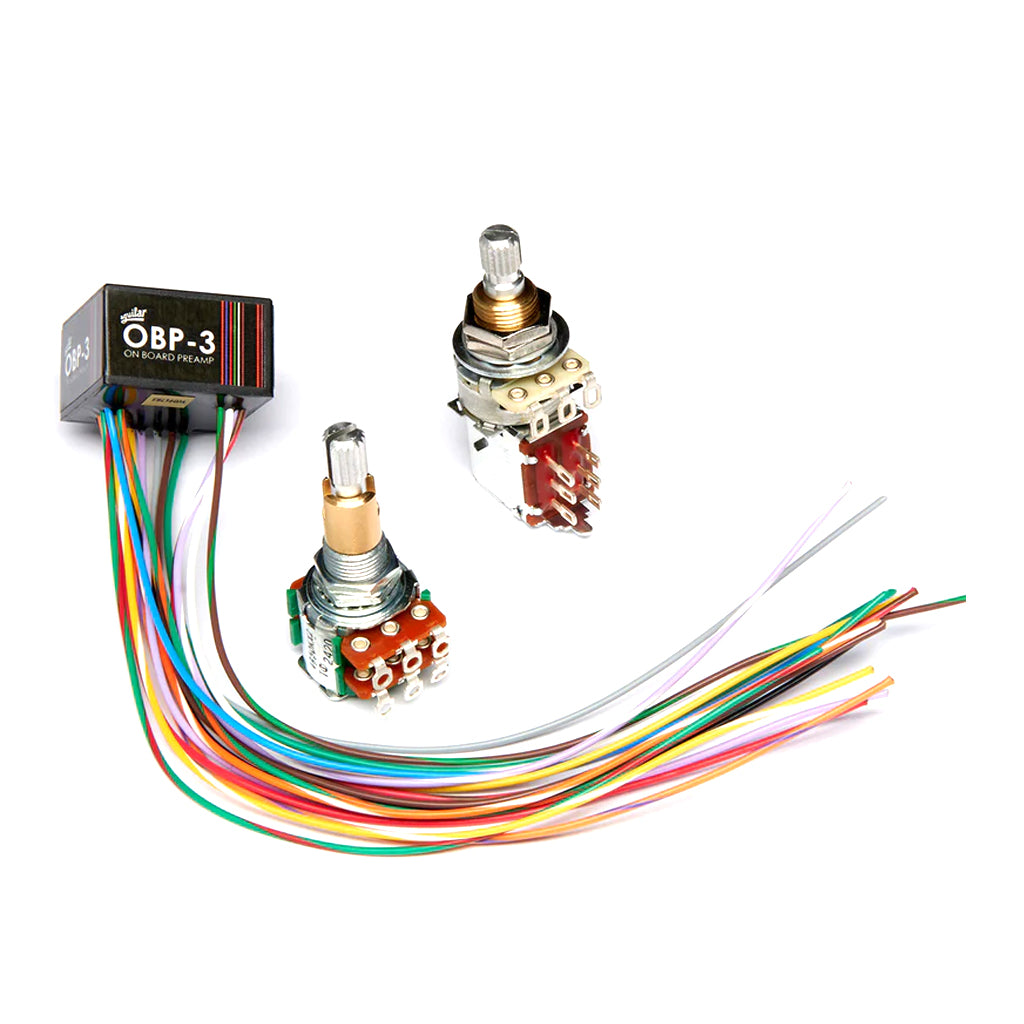

    Aguilar OBP-3 Preamp Stacked B/T with Mid Switch


    ⓘ Product ETA: Call for ETA


     More payment options
    Pay with Afterpay Popup AMEX Logo Mastercard Logo ZipPay Logo Apple Pay Logo Visa Logo Paypal Logo
    Or Rent From
    $3.47 per weekReturn any time after minimum rental agreement
    Description

    The OBP-3 SK/PP is a three-band boost and cut bass, mid, and treble preamp, that has high headroom, low distortion, and the ability to reproduce the full dynamic range of your instrument. The OBP-3 has multiple wiring options, and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection. OBP-3 SK/PP kit includes stacked Treble/Bass pot and separate Mid pot. Mid pot is push/pull for Midrange frequency selection. The OBP-3 is Aguilar's most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz.

    Features

    • OBP-3SK/PP: Stacked Treble/Bass pot and separate Mid pot. Mid pot is push/pull for Mid freq
    • Bass control: plus/minus 18 dB @ 40 Hz
    • Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User selectable frequency center
    • Treble control: plus/minus 16 dB @ 6.5 KHz
    • Input impedance: 1 meg ohm
    • Output impedance: 100 ohm 9 or 18 volts operation
    • Distortion: .019 into 10k ohm load
    • Noise: -95 dBm unweighted
    • Battery life: 324 hours
