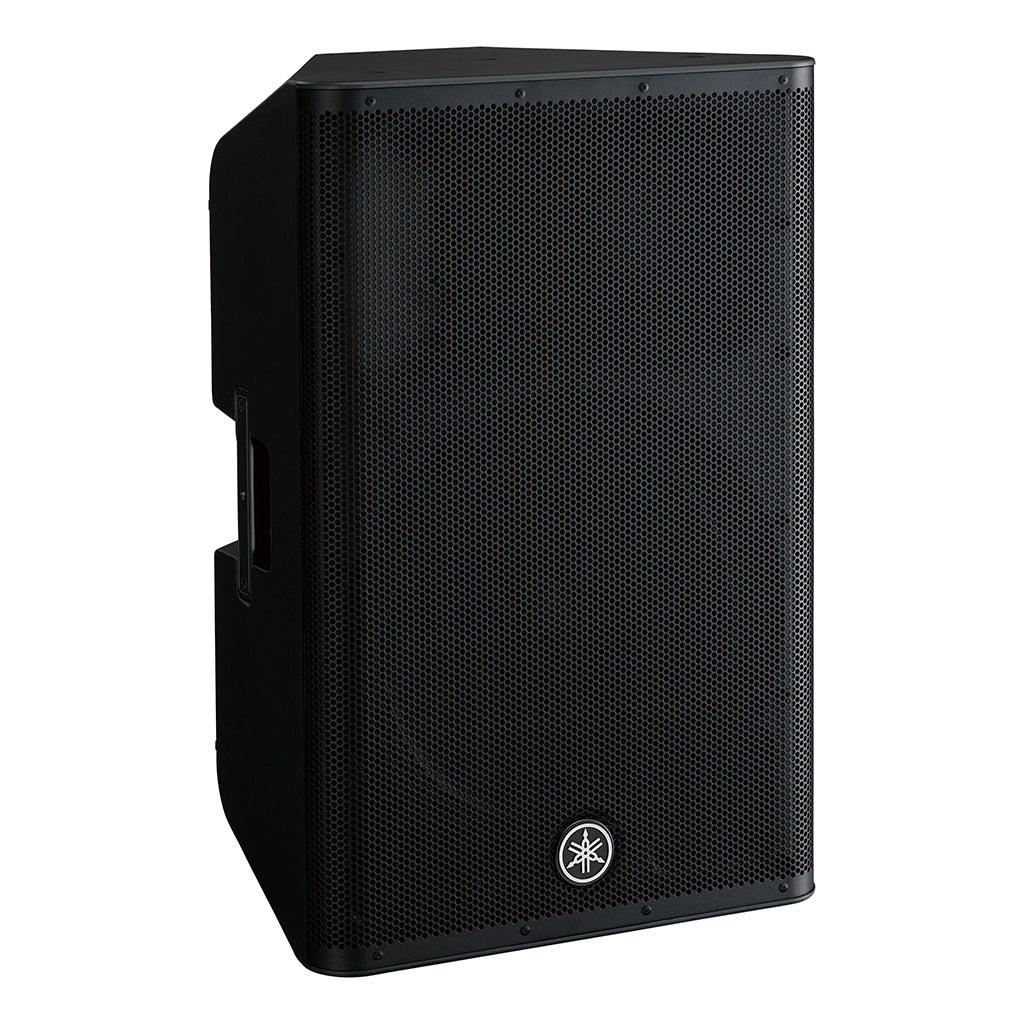

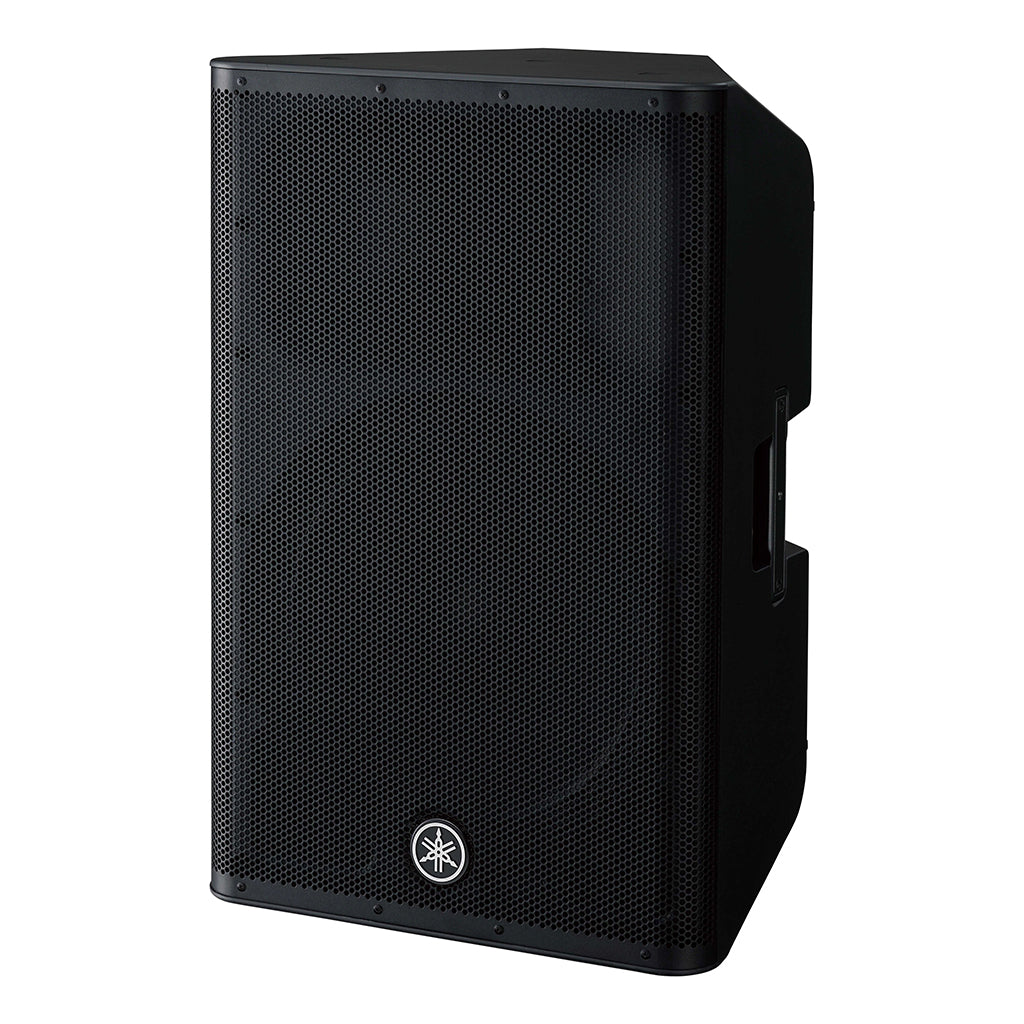

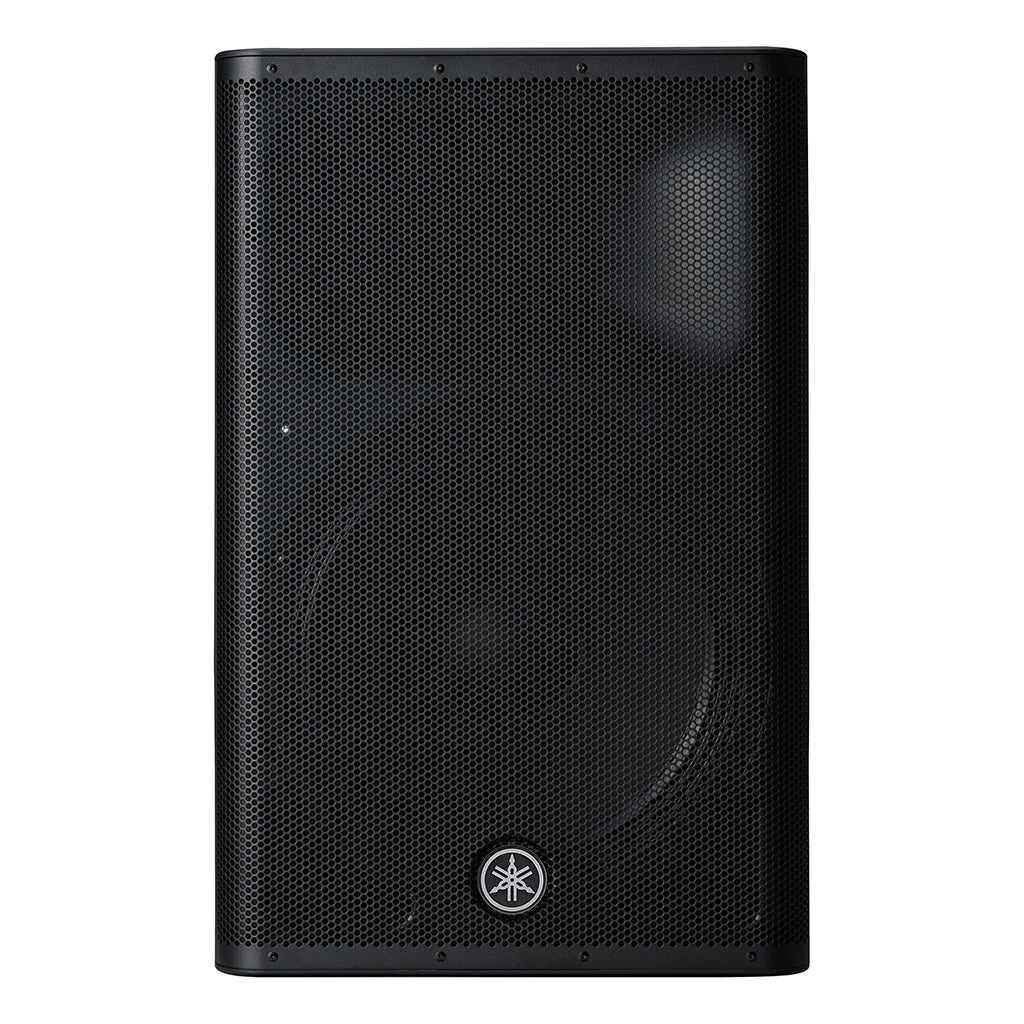

    Yamaha DXR15 MKII


    ⓘ Please call for current stock updates before visiting us in-store.


    Pay with Afterpay Popup AMEX Logo Mastercard Logo ZipPay Logo Apple Pay Logo Visa Logo Paypal Logo

    Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75” Neodymium HF compression driver for extremely clear voice reproduction and musicality. Once again our team worked in tight collaboration with touring loudspeaker specialists NEXO, adding crucial insight and expertise that led to design improvements based on the ever-evolving demands of sound reinforcement professionals.

    Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity you’ve come to expect from the DXR Series… only MORE.

    The DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies. Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.

    Features

    • Louder, Lighter, Legendary
    • Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs
    • Less Weight, More Power
    • The Power of D
    • Ultra-Precise 48Bit DSP Processing for High-Definition Sound
    • Intelligent Dynamic Control for Consistent Clarity at Any Output Level
    • Extensive DSP Protection Functions for Maximum Output
    • High-Efficiency 1100W Class-D Amplifiers
    • Intelligent Onboard 3-Channel Mixer
    • Durable, Compact ABS Enclosures
    • Symmetrical Enclosure Design for Mirror-Mode Floor Monitoring
    • Dual-Angle Pole Mount Socket
    • Rigging Points for Standard Eye-Bolts and Optional U-Brackets

    Specs

    Speaker Size (Inches)

    15

    Vertical Coverage Angle

    60

    Output Power - Peak (Watts)

    1100

    Output Power - RMS (Watts)

    700

    Signal Processing (DSP)

    No

    Mounting Options

    Floor Wedge, Fly , Pole, Tilted Pole

    Maximum Peak SPL

    134dB

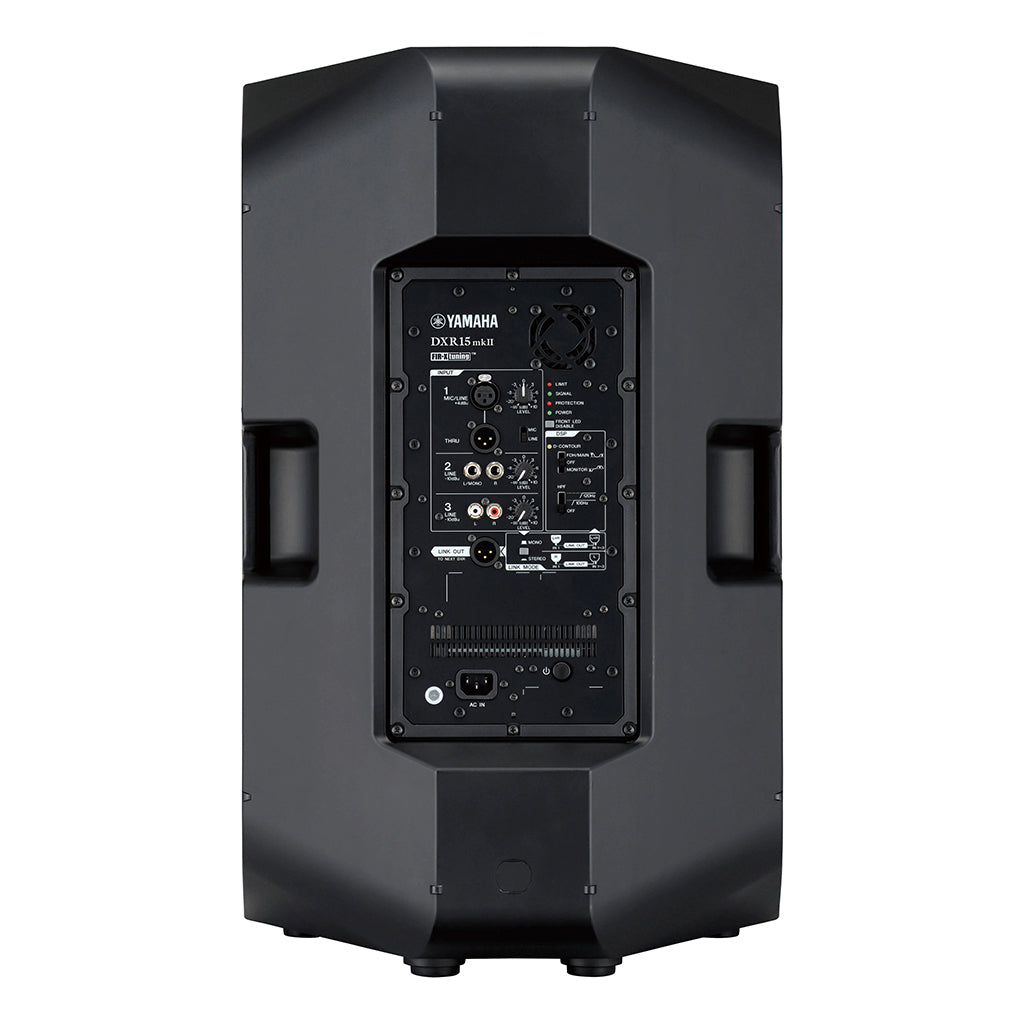

    Analog Inputs

    1x XLR , 1x Stereo 1/4-inch TRS, 1x Stereo RCA, 1 XLR Thru (Parallel with Input 1)

    Analog Outputs

    1x XLR Link Out

    Frequency Range

    49Hz - 20kHz

    Speaker Type

    Powered

    HF Driver Size

    1.75-inch

    Horizontal Coverage Angle

    90°

    LF Driver Size

    15-inch cone, with 2-inch voice coil
